SAFEGATE MZ T4P
Set of Muting Brackets with 4 M5 sensors, T-Logic, Parallel beams
In Stock
$874.63
per unit
Applications: Safety Systems
Description

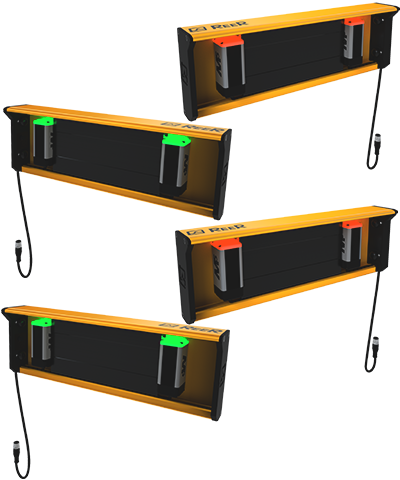

Parallel beams Muting brackets with 4 M5 multi-beam photocells
Can be used in conjunction with Safegate access control barriers to create a two-way access control system with entry-exit T-Muting logic
What’s in the box: 4 Muting brackets with 4 M5 multi-beam photocells (emitter and receiver), screws and fixing brackets
Technical Data
Features
| Max. range (m) | 3.5 |
| Functioning system | Emitter / Receiver |
| Operating temperature (°C) | – 30 … 55 |
| Muting logic | T (Two way) logic with 4 sensors – Parallel beams |
| Muting sensor field | Adjustable height and horizontal and vertical tilting |
| Characteristic output of Muting sensors | PNP 100 mA at 24 VDC |
| Muting sensors | Brackets for 4 multibeams Muting sensors M5 |
| Integrated optoelectronic sensors | 4 multibeams M5 with parallel beams |
| Detection | Access control |
| Protective enclosures | None |
| Packaging dimensions HxLxW (mm) | 145 x 910 x 200 |
| Product class | A |
| Custom tariff | 8538909999 |
Mechanical data

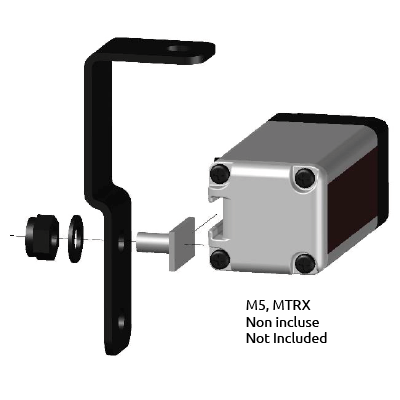

| Fastening | Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional) |
