SAFEGATE MA L2X
Set of Muting Arms, L-Logic, 2 crossed beams
In Stock
$382.83
per unit
Applications: Safety Systems
Description

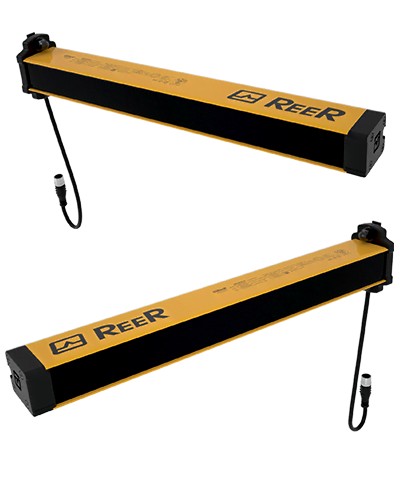

Crossed beams Muting arms with 2 through-beam sensors
Can be used in conjunction with Safegate access control barriers to create a one-way access control system with exit-only L-Muting logic
What’s in the box: 2 Muting arms (emitter and receiver) with pre-wired and pre-aligned Muting sensors, screws and fixing brackets
Technical Data
Features
| Max. range (m) | 2.5 |
| Functioning system | Emitter / Receiver |
| Operating temperature (°C) | – 30 … 55 |
| Muting logic | L (One way) logic with 2 crossed beams |
| Muting sensor field | Adjustable height and tilting |
| Characteristic output of Muting sensors | PNP 100 mA at 24 VDC |
| Muting sensors | Emitter and receiver arms |
| Integrated optoelectronic sensors | 2 with crossed beams |
| Detection | Access control |
| Protective enclosures | None |
| Packaging dimensions HxLxW (mm) | 145 x 390 x 200 |
| Product class | A |
| Custom tariff | 8538909999 |
Mechanical data
| Fastening | Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional) |
