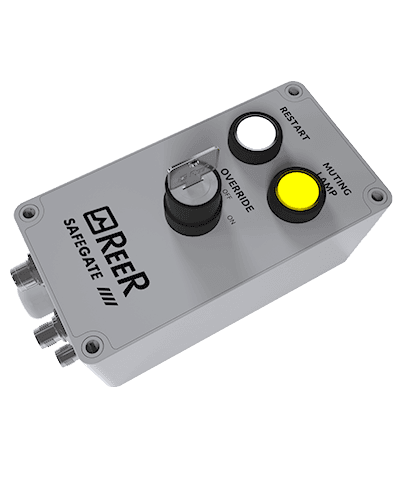

SAFEGATE M SGO BOX PLUS
Safegate Connection Box, Restart + Override + Muting lamp (4NO+1NC)
In Stock
$719.87
per unit
Applications: Safety Systems
Description
The M SG connection boxes are accessory devices designed for a quick and reliable connection of Safegate light curtains to provide all major operating controls within the guarded area
Technical Data
Features
| Built-in Muting lamp | Yes |
| Signalling | LEDs for outputs and Muting/Override status |
| Connections | M12 5-pole connector (emitter), M12 12-pole connector (receiver or active TRX element), M12 5-pole connector (Muting lamp) |
| Safety devices to be connected | All Safegate models, excluding S models |
| Override selectors | Yes |
| Restart button | Yes |
| Safety relay outputs | 4 NO + 1 NC (6A at 250 VAC) |
| Packaging dimensions HxLxW (mm) | 320 x 235 x 160 |
| Product class | A |
| Custom tariff | 8543709099 |
Mechanical data
| Dimensions HxWxD (mm) | 210 x 110 x 95 |
| Fastening | Set of plastic brackets inserted in the holes placed on the box rear side corners (included) |
