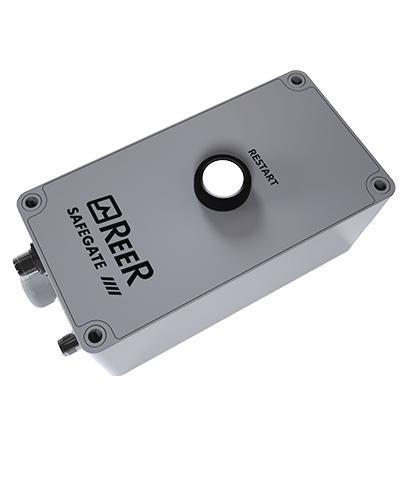

SAFEGATE M SG BOX RST P
Safegate Connection Box, Restart (2 static OSSD Profisafe) (for S TRX – A models only)
In Stock
$413.47
per unit
Applications: Safety Systems
Description
The M SG connection boxes are accessory devices designed for a quick and reliable connection of Safegate light curtains to provide all major operating controls within the guarded area
Technical Data
Features
| Built-in Muting lamp | No |
| Signalling | LEDs indication for outputs status |
| Connections | M12 5-pole connector for active TRX element. M12 5-pole connector (male) for I/O module output |
| Safety devices to be connected | Safegate S TRX models |
| Override selectors | No |
| Restart button | Yes |
| Safety relay outputs | 2 NO + 1 NC (6A at 250 VAC) |
| Packaging dimensions HxLxW (mm) | 320 x 235 x 160 |
| Product class | B |
| Custom tariff | 8543709099 |
Mechanical data
| Dimensions HxWxD (mm) | 210 x 110 x 95 |
| Fastening | Set of plastic brackets inserted in the holes placed on the box rear side corners (included) |
