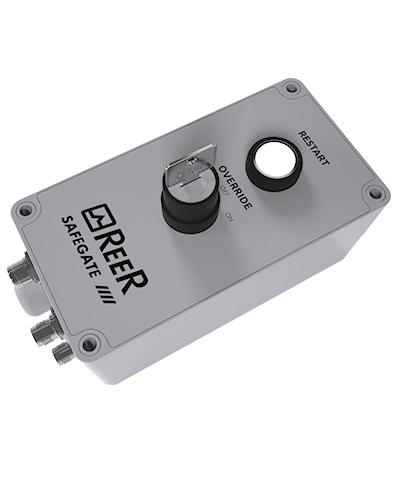

SAFEGATE M SG BOX OSSD
Safegate Connection Box, Restart + Override (2 static OSSD)
In Stock
$458.10
per unit
Applications: Safety Systems
Description
The M SG connection boxes are accessory devices designed for a quick and reliable connection of Safegate light curtains to provide all major operating controls within the guarded area
Technical Data
Features
| Built-in Muting lamp | No |
| Signalling | LEDs indication for outputs status |
| Safety output type | 2 OSSD DC PNP (400 mA at 24 VDC) |
| Connections | M12 5-pole connector (emitter), M12 12-pole connector (receiver or active TRX element) |
| Safety devices to be connected | All Safegate models, excluding S models |
| Override selectors | Yes |
| Restart button | Yes |
| Safety outputs | 2 OSSD PNP (400 mA at 24 VDC) |
| Packaging dimensions HxLxW (mm) | 320 x 235 x 160 |
| Product class | A |
| Custom tariff | 8543709099 |
Mechanical data
| Dimensions HxWxD (mm) | 210 x 110 x 95 |
| Fastening | Set of plastic brackets inserted in the holes placed on the box rear side corners (included) |
