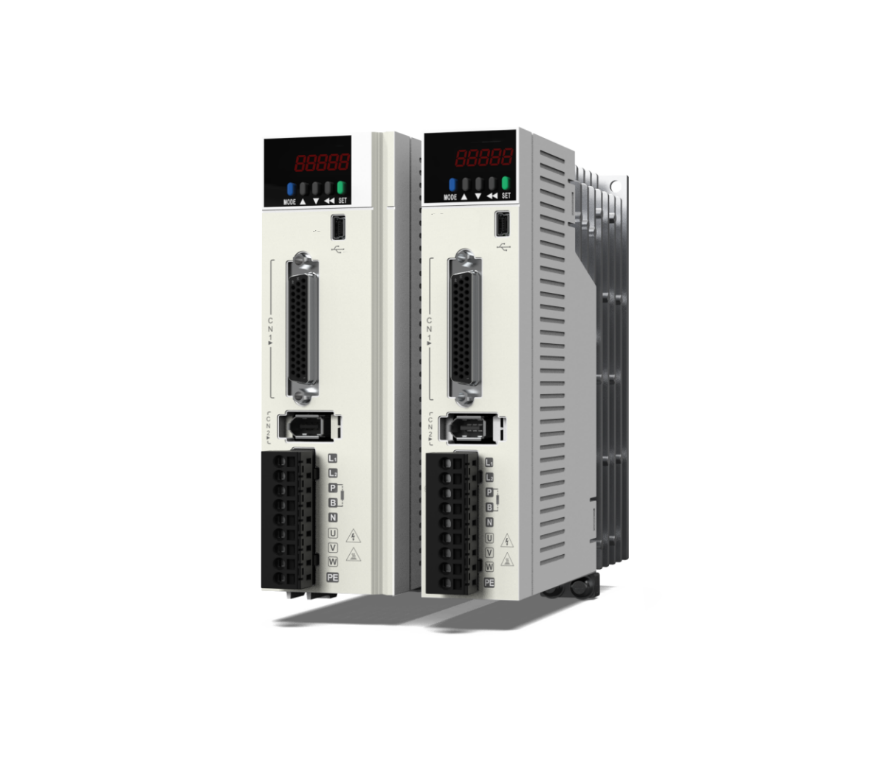

SA2-P1R8MS Servo driver
Servo driver, SA Series, SA2-P1R8MS, Rated current 1.8 A, 23-bit precision, Pulse control, Standard capacity type, 5 DI + 4 DO
In Stock
$279.03
per unit
Applications: Motion Control
Technical Data
| Analog inputs | None |
| High-speed digital input | None |
| Normal digital input | 5 DI |
| Normal digital output | 4 DO |
| Rated output current | 1.8 Arms |
| Resolution | 23 bit precision |
| Voltage level | Single-phase 220 V AC |
| Communication protocol | Pulse |
| Customized parameters | Standard |
| Overload factor | _400 % |
| Capacity class | Standard capacity |
| Braking resistor | external |
| Analog output | None |
| Configure the motor power | 100 W, 200 W |
