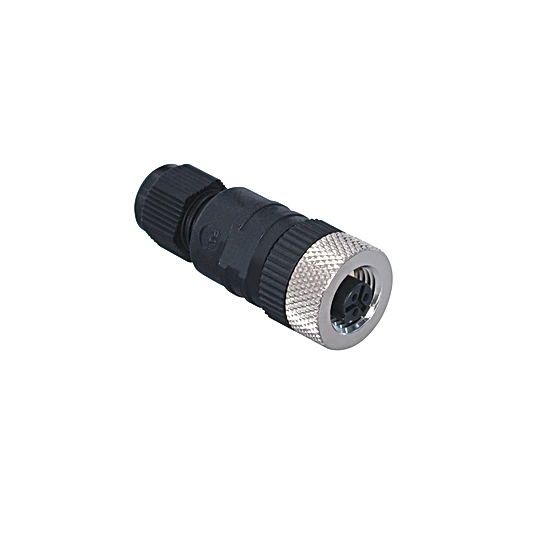

S33G Connection Socket 1/2″ – 20; 3-pin
Connection Socket
In Stock
$23.14
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- Straight
Technical Data
Mechanical Data
| Connection 1 | Socket, straight |
| Connection mode 1 | 1/2″ – 20, 3-pin |
| Outer diameter (d) | 3 … 6.5 mm |
| Wire cross-section | ≤ 0.75 mm² |
| Assembling | Screw Terminal Technology |
| Degree of Protection | IP67 |
| Temperature Range | -25 … 90 °C |
| Material Sleeve Nut | Brass, nickel-plated |
| Weight | 26 g |
General Data
| Scope of delivery | 1 × connection socket |
| Packaging unit | 1 Piece |
Pin assignment
 |
Connection Diagram
 |
