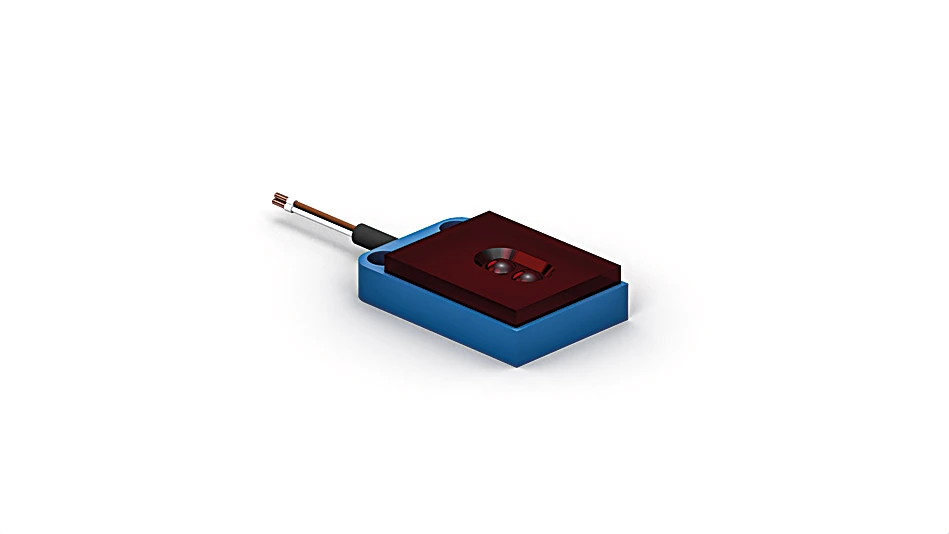

Description
These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.
Features at a Glance
- Rear panel mounting
- Test input
Technical Data
Optical Data
| Range | 1,000 mm |
| Light Source | Infrared Light |
| Service Life (T = +25 °C) | 100,000 h |
| Opening Angle | 25 ° |
Electrical Data
| Sensor Type | Emitter |
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 30 mA |
| Temperature Drift | < 10 % |
| Temperature Range | -25 … 60 °C |
| Reverse Polarity Protection | yes |
| Test input | PNP |
| Protection Class | III |
Mechanical Data
| Housing Material | Plastic, ABS/GF |
| Degree of Protection | IP67 |
| Connection | Cable; 3-wire |
| Cable length (L) | 2 m |
| Cable Jacket Material | PVC |
| Wire cross-section | 0.09 mm² |
| Weight | 21 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 6,531.61 a |
General Data
| Scope of delivery | 1 × BEF-SET-23 mounting set 1 × initial start-up instructions 1 × sensor |
Standards and certificates
     |
Connection Diagram
 |
