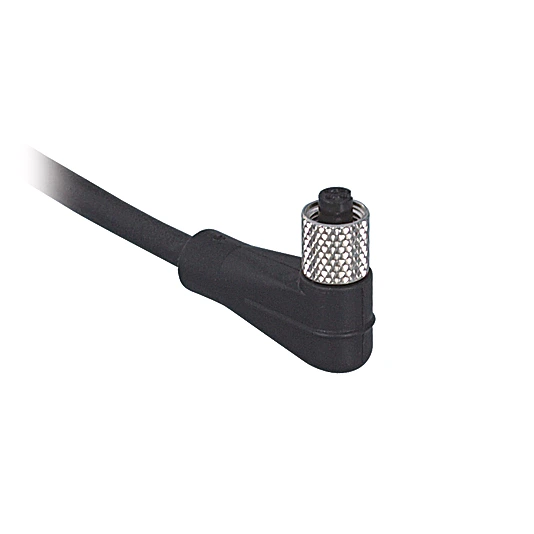

S13W-2M Connection Line M5 × 0,5; 3-pin
Connection Line
In Stock
$31.38
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- PUR, angled
Technical Data
Electrical Data
| Supply Voltage | ≤ 125 V DC/AC |
Mechanical Data
| Connection 1 | Socket, angled |
| Connection mode 1 | M5 × 0,5; 3-pin |
| Connection 2 | stripped |
| Torque | M5: 0,3 Nm |
| Cable length (L) | 2 m |
| Outer diameter (d) | 3 mm |
| Wire cross-section | 0.14 mm² |
| Degree of Protection | IP67 |
| Temperature range (fixed installation) | -15 … 80 °C |
| Temperature range (moving application) | -5 … 80 °C |
| Cable Jacket Material | Plastic, PUR |
| Material Wire Insulation | Plastic, PVC |
| Material Sleeve Nut | Brass, nickel-plated |
| Weight | 28 g |
General Data
| Scope of delivery | 1 × line |
| Packaging unit | 1 Piece |
Pin assignment
 |
Connection Diagram
 |
