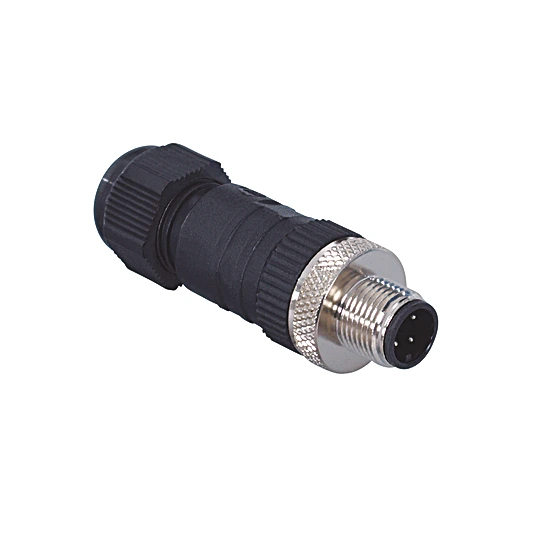

S03G Connector Plug M12 × 1; 4-pin
Connector Plug
In Stock
$28.18
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- Plug M12 × 1, straight
Technical Data
Mechanical Data
| Connection 1 | Plug, straight |
| Connection mode 1 | M12 × 1, 4-pin |
| Torque | M12: 0,6 Nm |
| Coding | A-coding |
| Outer diameter (d) | 4 … 8 mm |
| Wire cross-section | ≤ 1.5 mm² |
| Assembling | Screw Terminal Technology |
| Degree of Protection | IP67 |
| Temperature Range | -25 … 90 °C |
| Material Sleeve Nut | Brass, nickel-plated |
| Weight | 29 g |
General Data
| Scope of delivery | 1 × connector plug |
| Packaging unit | 1 Piece |
Pin assignment
 |

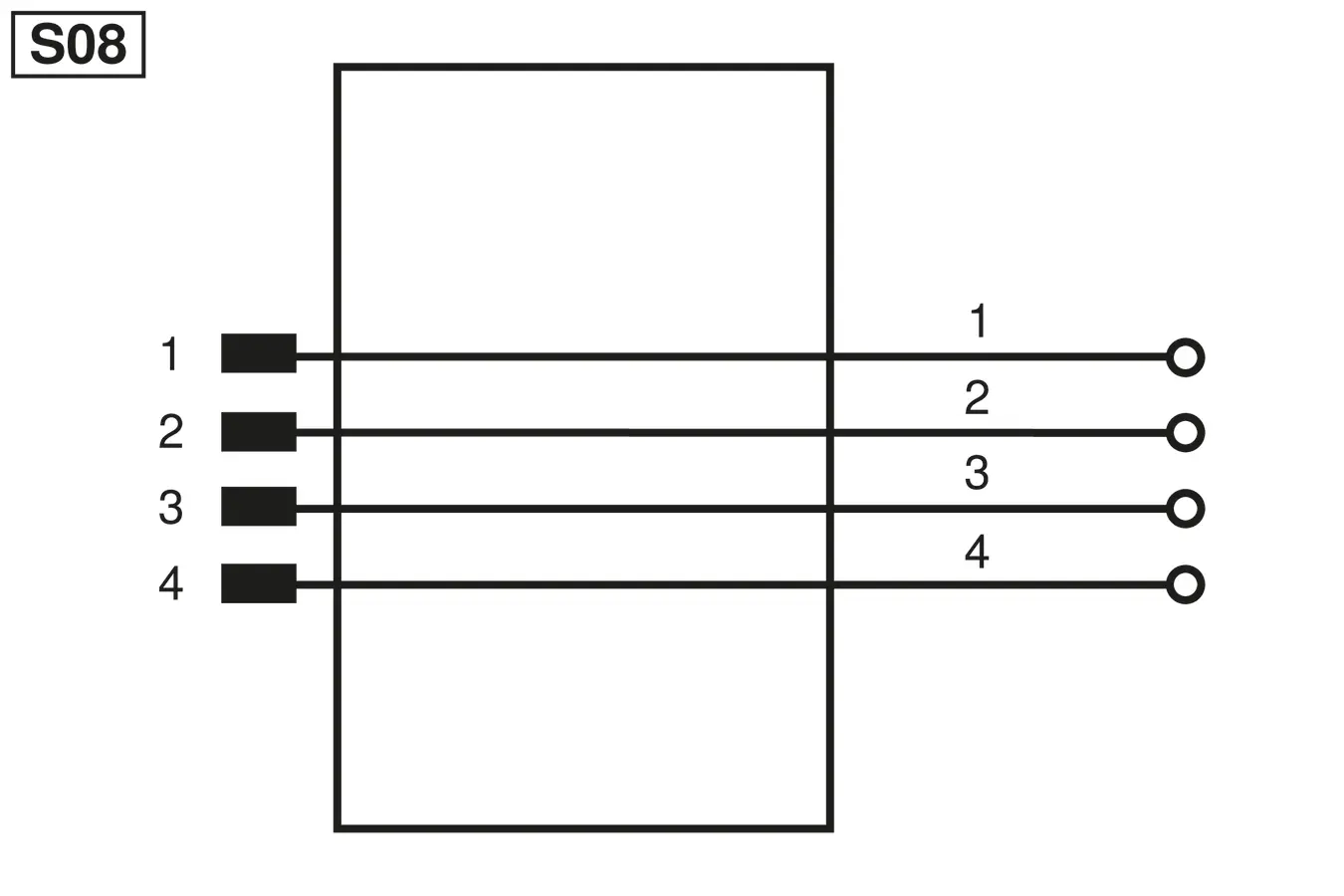

Connection Diagram
 |
