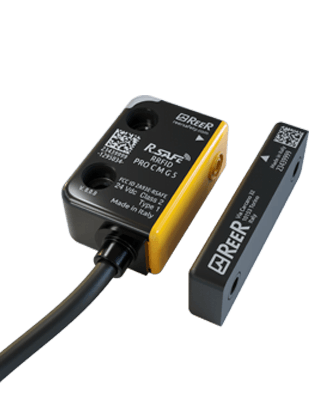

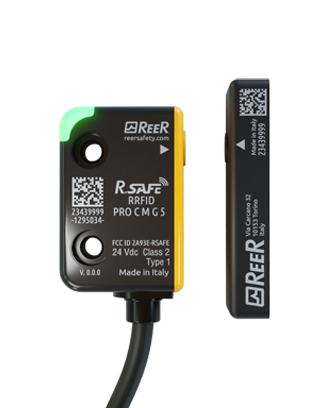

R-SAFE RFID PRO C M U 1
Combo (sensor + slim actuator), Unique coding, 1 m 8-pole cable, individual status output, interaxis sensor 22 mm / actuator 40 mm
In Stock
$161.71
per unit
Applications: Safety Systems
Description
Unique Coding: the actuator is permanently assigned to the sensor during manufacturing (it cannot be replaced with another actuator)
Technical Data
Features
| Safety level | PL e |
| Safety inputs | 2 digital inputs |
| Safety level (SIL / PL) | SIL 3 – SILCL 3 – PL e – Cat. 4 |
| Operating temperature (°C) | – 25 … 70 |
| Response time (ms) | 55 |
| Sensor type | RFID switches |
| Safety output type | 2 OSSD (300 mA at 24 VDC) with protection against short circuit |
| PFHD (IEC 61508) | 2,18E-09 |
| Materials suitable for food applications | Yes |
| Min. switching current at 24 VDC (mA) | 300 |
| Safety outputs | 2 OSSD pairs (300 mA) |
| Test outputs | 1 |
| LED signalling | 3 colour LED status signalling |
| Coding type | Unique Coding Actuator |
| Product class | A |
| Custom tariff | 9032890090 |
| Connection type | Cable |
Electrical data
| Power supply (VDC) | 24 ± 20% |
Mechanical data
| Dimensions HxWxD (mm) | Sensor: 28,5 x 50 x 18 / Actuator: 9 x 52 x 18 |
| Degree of protection | IP67 – IP69K (connector excluded) |
| Fastening | M4 screws (e.g. M4 x 20) |
| Housing | Nylon / rectangular |
| Switching distance (mm) | 12 … 25 |
| Size | Sensor 22 mm interaxis / Actuator 40 mm interaxis |
