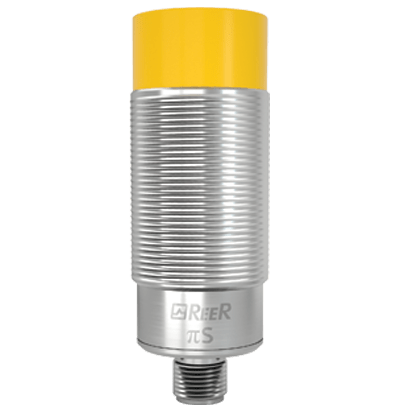

PI-SAFE PI M30 NF K
M30, Enable zone 6/12 mm, Non-Flush Mounting, IP69K, 2 OSSD outputs
Applications: Safety Systems
Description
Fail-safe inductive sensors for position detection
– Certification to EN 60947-5-3 for electromechanical control gear
– Ensuring operator and machine safety
– No special actuator for electronic fail-safe sensors required
– Connection to safety interface, safety controller or safety PLC (i.e. SR ONE, Mosaic)
Typical applications: Door or flaps detection at closed position, Cylinder shaft detection, Treads up detection, Bolster detection at a truck crane, Robot cell working limitation of the working area, Door detection, Wind turbine lock / endpostion of the blade
Technical Data
Features
| Safety level | PL e |
| Safety level (SIL / PL) | SIL 3 – PL e |
| Operating temperature (°C) | – 25 … 70 |
| Response time (ms) | ≤ 10 |
| Sensor type | Inductive sensors |
| Safety output type | 2 OSSD DC PNP (400 mA at 24 VDC) |
| Safety outputs | 2 OSSD PNP (400 mA at 24 VDC) |
| LED signalling | Bi-colour LED: Signal (yellow); Power supply (green) |
| Product class | C |
| Custom tariff | 9032890090 |
| Connection type | Connector |
Electrical data
| Power supply (VDC) | 24 ± 20% |
| Operating current (mA) | < 30 (Switching Max. 100) |
Mechanical data
| Degree of protection | IP69K |
| Fastening | 2 M30 fixing nuts (included). Angle brackets or mounting clamps (optional) |
| Lenght (mm) | 80 |
| Mounting | Non-flush mountable |
| Housing | Stainless steel body; PBT head |
| Switching distance (mm) | 6 … 12 |
| Size | Cylindrical M30 |
