PEBL301 Light Curtain Pick-to-Light
Light Curtain
In Stock
$978.00
per unit
Applications: Sensors & I/O
Description

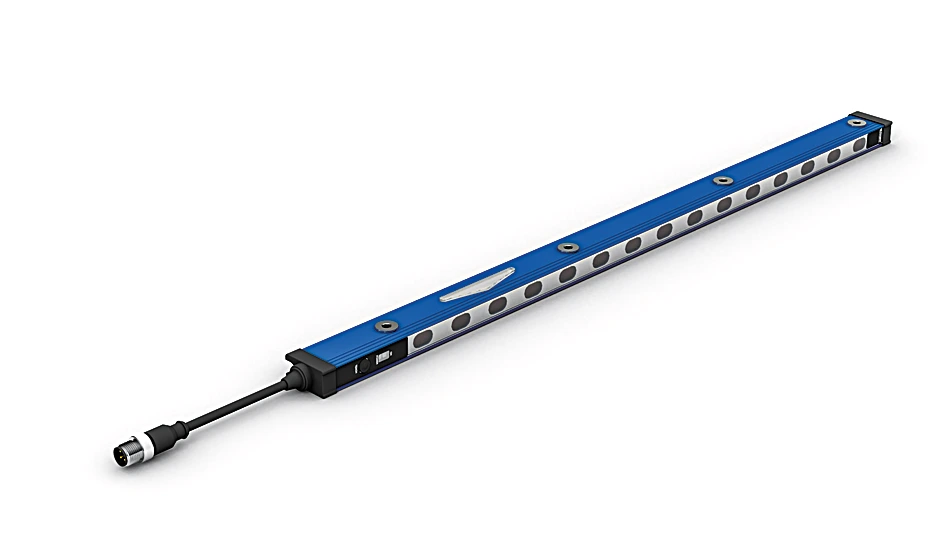

Pick-to-light light curtains work according to the retro-reflex principle. The required reflector is already mounted on the rear of the housing and serves as a reflective surface for the adjacent light curtain, which simplifies installation. The arrow-shaped, two-tone illuminated or flashing job indication points in the direction of the respective compartment from which the part is to be removed. It signals both correct and incorrect part removal.
Features at a Glance
- Error prevention during partial picking processes in shelves and storage locations
- Low mounting thanks to integrated reflector
- Rugged aluminium housing
- Directional, two-tone job indication
Technical Data
Optical Data
| Range | 2,000 mm |
| Min. Distance to Reflector | 100 mm |
| Measurement Field Height (MFH) | 420 mm |
| Beam Distance | 30 mm |
| Switching Hysteresis | < 15 % |
| Light Source | Red Light |
| Polarization Filter | yes |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | 2.5 ° |
| Two-Lens Optic | yes |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 80 mA |
| Switching Frequency | 40 Hz |
| Response Time | 12 ms |
| Temperature Drift | < 10 % |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data
| Setting Method | Teach-In |
| Display | Illuminated arrow |
| Housing Material | Aluminum, powder-coated Plastic, PA |
| Optic Cover | Plastic, PMMA |
| Degree of Protection | IP65 |
| Connection | M12 × 1; 4-pin |
| Cable length (L) | 250 mm |
| Housing Length (L) | 546 mm |
| Reflector Length (RL) | 486 mm |
| Weight | 270 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 377.37 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Output
| PNP NO/NC switchable | yes |
Adjustable parameters
| Circuit | NC NC/NO NO |
| All other parameters can be found in the product documentation. |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
06 = Teach Button
68 = Power LED 01 = Switching Status Indicator |
