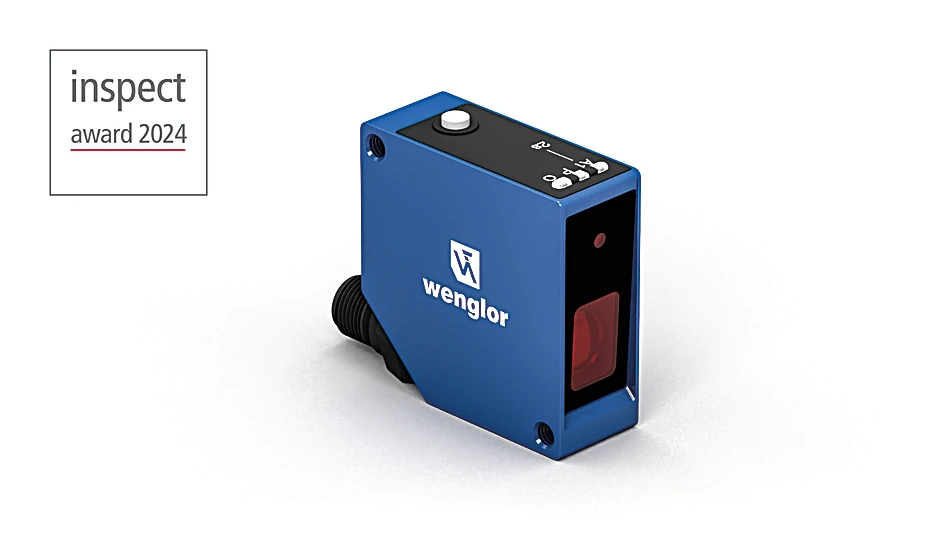

P3PC181 Laser Distance Sensor Triangulation
Laser Distance Sensor
In Stock
$1,897.00
per unit
Applications: Sensors & I/O
Description
These laser distance sensors work with a fine red light beam and a high-resolution CMOS line. They determine the distance between the sensor and the object by means of the triangulation principle. Thanks to the integrated TripleA technology, the sensors offer high precision, temperature stability and material independence. This means they deliver accurate results even with objects of different materials, colors and shapes, as well as in fluctuating light and temperature conditions. The intuitive operating concept simplifies initial start-up and makes the sensors versatile all-rounders.
Features at a Glance
- Analog output: 4…20 mA
- Measured value independent of material, color and brightness
- Rugged aluminium housing
- Teach-in
- Intuitive operating concept
Technical Data
Optical Data
| Working Range | 40 … 240 mm |
| Setting Range | 40 … 240 mm |
| Reproducibility maximum | 70 µm |
| Reproducibility: 1 Sigma | 6 µm |
| Linearity Deviation | 200 µm |
| Switching Hysteresis | < 0.5 % |
| Light Source | Laser (red) |
| Wavelength | 655 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 1 |
| Max. Ambient Light | 20,000 Lux |
| Light Spot Diameter | see Table 1 |
Electrical Data
| Supply Voltage | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 60 mA |
| Switching Frequency | 650 Hz |
| Measuring Rate | 2,500 /s |
| Response Time | < 0.5 ms |
| Temperature Drift | < 15 µm/K |
| Temperature Range | -30 … 60 °C |
| Number of Switching Outputs | 1 |
| Switching Output Voltage Drop | < 1.5 V |
| Switching Output/Switching Current | 100 mA |
| Analog Output | 4…20 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Interface | IO-Link V1.1 |
| IO-Link Version | 1.1 |
| IO-Link transmission speed | COM3 |
| Protection Class | III |
Mechanical Data
| Setting Method | Teach-In |
| Housing Material | Aluminum, anodised Plastic, ABS |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 5-pin |
| Optic Cover | Plastic, PMMA |
| Weight | 69 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 621.06 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Output
| PNP NO | yes |
| Analog Output | yes |
| IO-Link | yes |
Adjustable parameters
| Output | Error Output Push-pull NPN PNP |
| Analog output | 0…10 V 4…20 mA |
| Circuit | NC NC/NO NO |
| Other parameters | Exposure time Laser light Switching hysteresis Teach-in mode Off-delay On-delay |
| All other parameters can be found in the product documentation. |
Standards and certificates
       |
Table 1
| Working Distance | 40 mm | 140 mm | 240 mm |
| Light Spot Diameter | 1,5 mm | 1 mm | 1 mm |
Connection Diagram
 |
Ctrl. Panel
|
5a = Switching Status Indicator, O1
68 = Power LED 7c = Analog Output Indicator, AO 06 = Teach Button |
