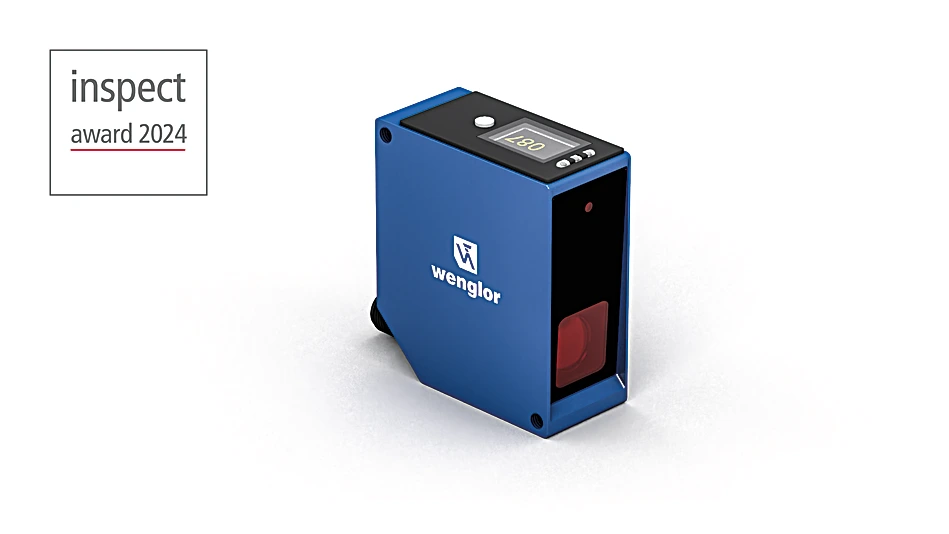

P3EC413 Laser Distance Sensor Triangulation
Laser Distance Sensor
In Stock
$2,280.00
per unit
Applications: Sensors & I/O
Description
These laser distance sensors work with a fine red light beam and a high-resolution CMOS line. They determine the distance between the sensor and the object by means of the triangulation principle. Thanks to the integrated TripleA technology, the sensors offer high precision, temperature stability and material independence. This means they deliver accurate results even with objects of different materials, colors and shapes, as well as in fluctuating light and temperature conditions. The intuitive operating concept simplifies initial start-up and makes the sensors versatile all-rounders.
Features at a Glance
- Analog output: 4…20 mA
- Graphical display for easy operation
- Measured value independent of material, color and brightness
- Rugged aluminium housing
- Switching output
Technical Data
Optical Data
| Working Range | 150 … 1,000 mm |
| Measuring Range | 150 … 1,000 mm |
| Reproducibility: 1 Sigma | 35 µm |
| Linearity Deviation | 750 µm* |
| Light Source | Laser (red) |
| Wavelength | 655 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 1 |
| Max. Ambient Light | 20,000 Lux |
| Light Spot Diameter | see Table 1 |
Electrical Data
| Supply Voltage | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 60 mA |
| Measuring Rate | 2,500 /s |
| Response Time | < 0.5 ms |
| Temperature Drift | < 75 µm/K |
| Temperature Range | -30 … 60 °C |
| Analog Output | 4…20 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Interface | IO-Link V1.1 |
| IO-Link transmission speed | COM3 |
| Protection Class | III |
| FDA Accession Number | 2311155-000 |
Mechanical Data
| Setting Method | Menu (OLED) |
| Housing Material | Aluminum, anodised Plastic, ABS |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 5-pin |
| Optic Cover | Plastic, PMMA |
| Weight | 188 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 397.4 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Output
| PNP NO | yes |
| Analog Output | yes |
| IO-Link | yes |
Adjustable parameters
| Output | Error Output Push-pull NPN PNP |
| Analog output | 0…10 V 4…20 mA |
| Circuit | NC NC/NO NO |
| Other parameters | Exposure time Laser light Switching hysteresis Teach-in mode Off-delay On-delay |
| All other parameters can be found in the product documentation. |
Additional product information
| External Information | Filter 6 preset, A2 preset as switching output |
Standards and certificates
       |
Table 1
| Working Distance | 150 mm | 575 mm | 1000 mm |
| Light Spot Diameter | 1 mm | 1 mm | 1 mm |
Connection Diagram
 |
Ctrl. Panel
|
5a = Switching Status Indicator, O1
68 = Power LED 7c = Analog Output Indicator, AO 20 = Enter key 60 = display |
