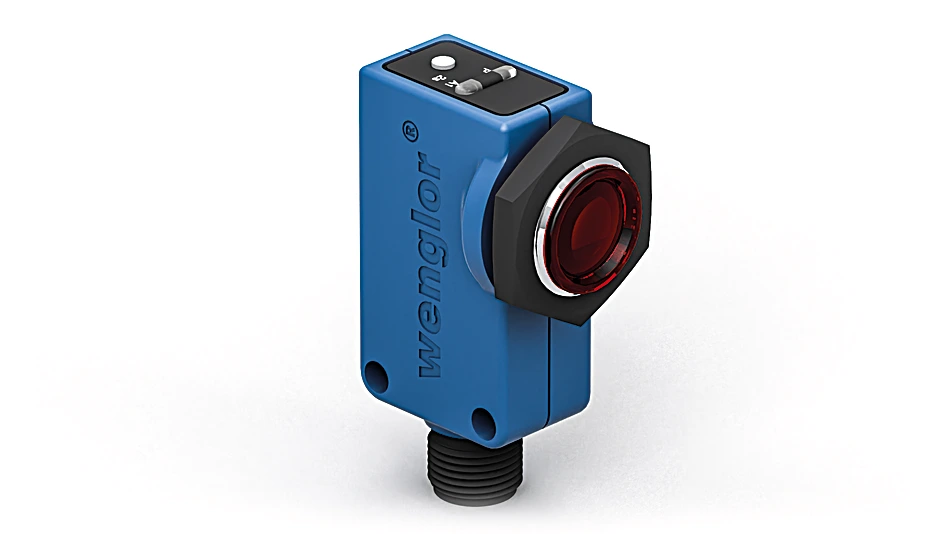

P1RL003 Retro-Reflex Sensor Universal
Retro-Reflex Sensor
In Stock
$304.00
per unit
Applications: Sensors & I/O
Description
The retro-reflex sensor works with a fine laser beam and a reflector. The focused laser class 1 laser beam detects objects, e.g. during assembly, feed or presence checks, from 1 mm in size over the entire range. The IO-Link interface can be used to configure retro-reflex sensors (PNP/NPN, NC/NO, switching distance) and to output switching states and signal values.
Features at a Glance
- Simple installation
- IO-Link 1.1
- Laser class 1
- Teach-in, external teach-in
Technical Data
Optical Data
| Range | 12,000 mm |
| Reference Reflector/Reflector Foil | RQ100BA |
| Smallest Recognizable Part | see Table 2 |
| Switching Hysteresis | < 5 % |
| Light Source | Laser focused (red) |
| Wavelength | 655 nm |
| Polarization Filter | yes |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 1 |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | see Table 1 |
| Single-Lens Optic | yes |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Supply Voltage with IO-Link | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Switching Frequency | 1,000 Hz |
| Switching frequency (speed mode) | 2,000 Hz |
| Response Time | 0.5 ms |
| Response time (speed mode) | 0.25 ms |
| Temperature Drift | < 5 % |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 2 V |
| NPN Switching Output/Switching Current | 100 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Lockable | yes |
| Teach Mode | NT, MT |
| Interface | IO-Link V1.1 |
| Protection Class | III |
| FDA Accession Number | 2411239-000 |
Mechanical Data
| Setting Method | Teach-In |
| Housing Material | Plastic, PBT Brass, nickel-plated |
| Full Encapsulation | yes |
| Degree of Protection | IP67 IP68 |
| Connection | M12 × 1; 4-pin |
| Weight | 27 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 2,817.28 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × MUTTER-M18-E012 hex nut 1 × sensor |
Output
| IO-Link | yes |
| NPN NC | yes |
| External teach-in input | yes |
Adjustable parameters
| Output | Push-pull NPN PNP |
| Circuit | NC NO |
| Other parameters | Off-delay On-delay Mode of operation Hysteresis Switching point Emitted light Teach-in mode |
| All other parameters can be found in the product documentation. |
Standards and certificates
       |
Table 1
| Working Distance | 1,2 m | 6 m | 12 m |
| Light Spot Diameter | 10 mm | 60 mm | 70 mm |
Table 2
| Distance, Sensor to Reflector | 1,2 m | 6 m | 12 m |
| Smallest Recognizable Part | 1 mm | 2 mm | 2 mm |
Connection Diagram
 |
Ctrl. Panel
|
30 = Switching Status/Contamination Warning
06 = Teach Button 68 = Power LED |
Reflector data
| RQ100BA | 0 … 12 m |
| RE18040BA | 0 … 8 m |
| RQ84BA | 0 … 12 m |
| RR84BA | 0 … 11 m |
| RE9538BA | 0 … 3.5 m |
| RE6151BM | 0 … 9 m |
| RR50_A | 0 … 9 m |
| RE6040BA | 0 … 9 m |
| RE8222BA | 0 … 6 m |
| RE3220BM | 0 … 3.5 m |
| RE6210BM | 0 … 3.5 m |
| RR25_M | 0 … 5 m |
| RR25KP | 0 … 1.5 m |
| RR21_M | 0 … 5 m |
| ZRAE02B01 | 0 … 3.5 m |
| ZRME01B01 | 0 … 2 m |
| ZRME03B01 | 0 … 3 m |
| ZRMR02K01 | 0 … 2 m |
| ZRMS02_01 | 0 … 4 m |
| RF505 | 0 … 2 m |
| RF508 | 0 … 2 m |
| RF258 | 0 … 2 m |
| ZRAF08K01 | 0 … 2 m |
| ZRDF03K01 | 0 … 7 m |
