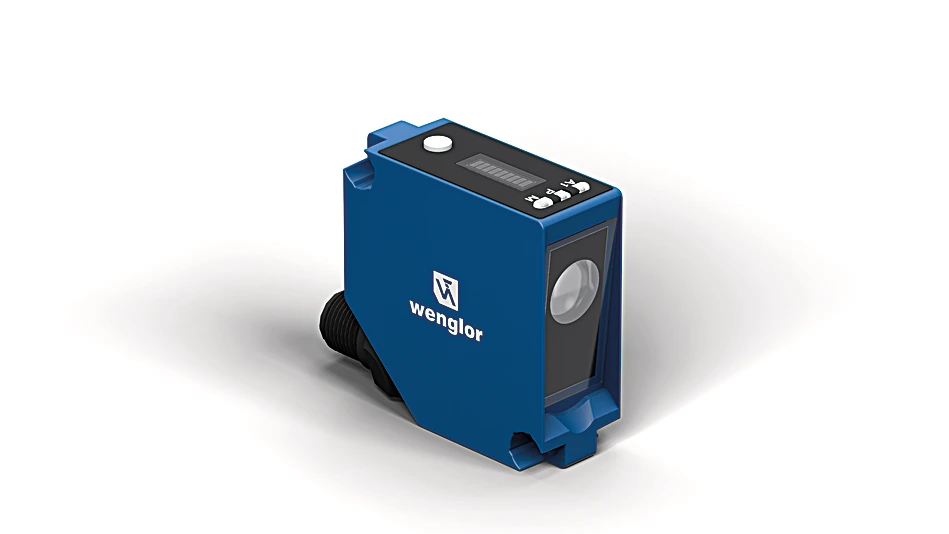

Description
These contrast sensors work with a white light LED emitter and an RGB receiver. They reliably detect all color and brightness combinations between the contrast marking and the background. The intuitive operating concept with the LED bar graph display and the well-conceived functions simplify initial start-up and make the sensors suitable for flexible use. The contrast sensors can also be parameterized via IO-Link. Extensive condition monitoring functions are also available for predictive maintenance and trouble-free operation.
Features at a Glance
- Very high contrast resolution
- Teach-in key and external teach-in
- Innovative display unit for simple diagnosis
- Intuitive operating concept
- Color mode
Technical Data
Optical Data
| Working Range | 30 … 40 mm |
| Working Distance | 35 mm |
| Resolution (Gray Scale) | 100 |
| Switching Hysteresis | < 1 % |
| Light Source | White Light |
| Wavelength | 400 … 700 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | 1.1 × 3.5 mm |
Electrical Data
| Supply Voltage | 10 … 30 V |
| Supply Voltage with IO-Link | 18 … 30 V |
| Current Consumption (Ub = 24 V) | < 50 mA |
| Switching Frequency | 50 kHz |
| Response Time | 13 µs |
| Jitter | 5 µs |
| Temperature Drift | < 6 % |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | 1.5 V |
| Switching Output/Switching Current | 100 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Lockable | yes |
| Mode of operation | Color |
| Interface | IO-Link V1.1 |
| IO-Link transmission speed | COM2 |
| Protection Class | III |
| IO-Link Version | 1.1 |
Mechanical Data
| Setting Method | Teach-In |
| Housing Material | Plastic, ABS |
| Optic Cover | Plastic, PMMA |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 5-pin |
| Weight | 34 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 719.27 a |
General Data
| Scope of delivery | 1 × Z1PE002 mounting set 1 × initial start-up instructions 1 × sensor |
Output
| NPN NC, NPN NO | yes |
| External teach-in input | yes |
Adjustable parameters
| Other parameters | Off-delay On-delay |
| All other parameters can be found in the product documentation. |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
06 = Teach Button
36 = Mode Indicator 5a = Switching Status Indicator, O1 60 = display 68 = Power LED |
