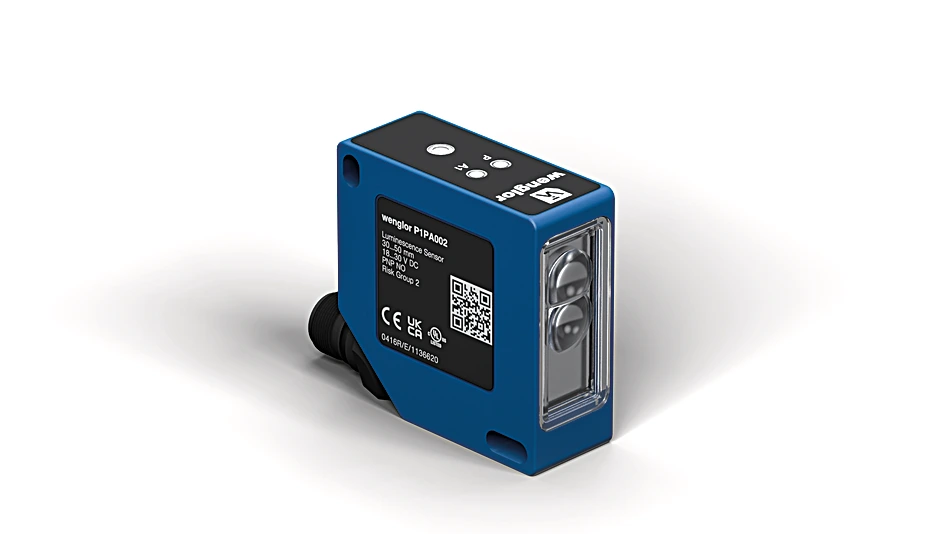

P1PA002 Luminescence Sensor
Luminescence Sensor
In Stock
$1,340.00
per unit
Applications: Sensors & I/O
Description
The luminescence sensor uses a receiver filter to detect all luminescent markings that emit light in the 570–750 nm wavelength range. Interfering whiteners can be suppressed with another receiver filter. The sensors have a small light spot and use a UV LED with a long service life.
Features at a Glance
- Recognition of luminescenting marks
- Digital intensity outputs via IO-Link 1.1 interface
- Simple configuration via teach-in button or wTeach2 software
Technical Data
Optical Data
| Working Range | 30 … 90 mm |
| Working Distance | 40 mm |
| Receiving Range | 570 … 750 nm |
| Switching Hysteresis | < 10 % |
| Light Source | UV Light |
| Wavelength | 375 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Risk Group (EN 62471) | 2 |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | see Table 1 |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 25 mA |
| Switching Frequency | 2,500 Hz |
| Response Time | 200 µs |
| On-/Off-Delay | 0 … 200 ms |
| Temperature Drift | < 5 % |
| Temperature Range | -25 … 60 °C |
| Number of Switching Outputs | 2 |
| Switching Output Voltage Drop | 1.5 V |
| Switching Output/Switching Current | 100 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Lockable | yes |
| Teach Mode | ZT, DT |
| Interface | IO-Link V1.1 |
| IO-Link Version | 1.1 |
| Protection Class | III |
Mechanical Data
| Setting Method | Teach-In |
| Housing Material | Plastic, ABS Plastic, PC |
| Optic Cover | Plastic, PMMA |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 5-pin |
| Weight | 78 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 2,671.54 a |
| Diagnostic Coverage (DC) | 0 % |
| Mission Time TM (EN ISO 13849-1) | 11.42 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Output
| PNP NO | yes |
| External teach-in input | yes |
Adjustable parameters
| Output | Push-pull NPN PNP |
| Circuit | NC NC/NO NO |
| Other parameters | Off-delay On-delay |
| All other parameters can be found in the product documentation. |
Standards and certificates
       |
Table 1
| Working Distance | 30 mm | 50 mm | 90 mm |
| Light Spot Diameter | 4 mm | 5 mm | 9 mm |
Connection Diagram
 |
Ctrl. Panel
|
06 = Teach Button
30 = Switching Status/Contamination Warning 68 = Power LED |
