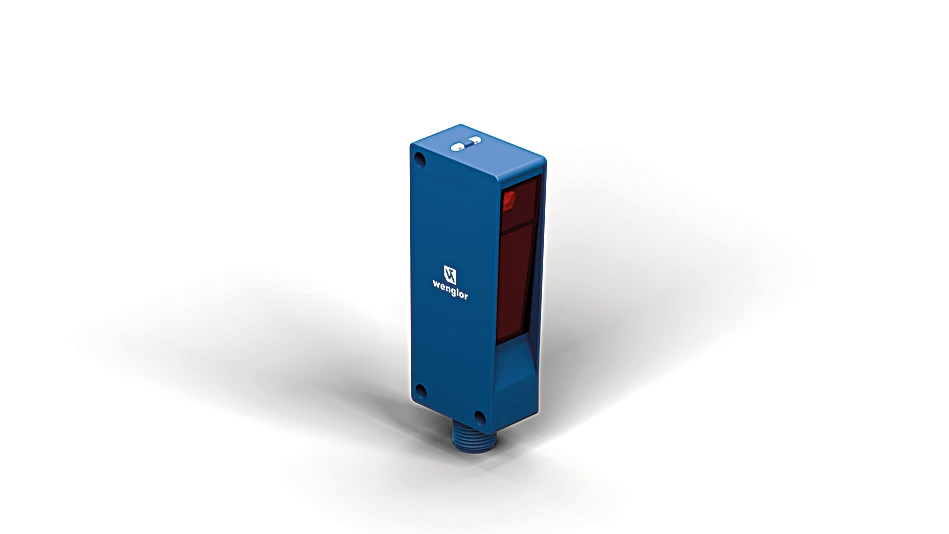

P1NL408 Retro-Reflex Sensor Universal
Retro-Reflex Sensor
In Stock
$546.00
per unit
Applications: Sensors & I/O
Description
The retro-reflex sensor works with a fine laser beam and a reflector. The laser class 1 collimated laser beam detects objects, for instance, when checking installation, feed or presence, starting at a size of 0.75 mm over the entire range. The IO-Link interface can be used to configure retro-reflex sensors (PNP/NPN, NC/NO, switching distance)and to output switching statuses and signal values.
Features at a Glance
- Condition monitoring
- High switching frequency
- IO-Link 1.1
- Detect extremely small parts starting at 0.75 mm
Technical Data
Optical Data
| Range | 9,500 mm |
| Reference Reflector/Reflector Foil | RE6151BM |
| Min. Distance to Reflector | 0 mm |
| Smallest Recognizable Part | see Table 2 |
| Switching Hysteresis | < 15 % |
| Light Source | Laser collimated (red) |
| Polarization Filter | yes |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 1 |
| Max. Ambient Light | 10,000 Lux |
| Single-Lens Optic | yes |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Supply Voltage with IO-Link | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 20 mA |
| Switching Frequency | 5,000 Hz |
| Switching Frequency (interference-free mode) | 2,500 Hz |
| Response Time | 0.1 ms |
| Response time (interference-free mode) | 0.2 ms |
| On-/Off-Delay | 20 ms |
| Temperature Drift | < 10 % |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 2 V |
| Switching Output/Switching Current | 100 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Interface | IO-Link V1.1 |
| Protection Class | III |
| FDA Accession Number | 1911373-000 |
Mechanical Data
| Setting Method | Potentiometer |
| Housing Material | Plastic, ABS/PC |
| Degree of Protection | IP67 IP68 |
| Connection | M12 × 1; 4-pin |
| Optic Cover | Plastic, PMMA |
| Weight | 49 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 2,369.59 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Output
| IO-Link | yes |
| NPN NO | yes |
Adjustable parameters
| Output | Push-pull NPN PNP |
| Circuit | NC NC/NO NO |
| Other parameters | Off-delay On-delay Mode of operation Hysteresis Emitted light |
| All other parameters can be found in the product documentation. |
Standards and certificates
       |
Table 1
| Working Distance | 2 m | 5 m | 9,5 m |
| Light Spot Diameter | 20 mm | 50 mm | 70 mm |
Table 2
| Distance, Sensor to Reflector | 2 m | 5 m | 9,5 m |
| Smallest Recognizable Part | 0,75 mm | 5 mm | 8 mm |
Connection Diagram
 |
Ctrl. Panel
|
01 = Switching Status Indicator
05 = Switching Distance Adjuster 68 = Power LED |
Reflector data
| RQ100BA | 0.07 … 9.5 m |
| RE18040BA | 0.07 … 6 m |
| RQ84BA | 0.07 … 8 m |
| RR84BA | 0.07 … 9.5 m |
| RE9538BA | 0 … 3 m |
| RE6151BM | 0 … 9.5 m |
| RR50_A | 0.06 … 8.5 m |
| RE6040BA | 0.07 … 9 m |
| RE8222BA | 0.06 … 5 m |
| RR34_M | 0 … 4.5 m |
| RE3220BM | 0 … 5 m |
| RE6210BM | 0 … 2 m |
| RR25_M | 0 … 3.3 m |
| RR25KP | 0 … 1.3 m |
| RR21_M | 0 … 1.8 m |
| Z90R004 | 0.15 … 3.9 m |
| Z90R005 | 0.15 … 5.5 m |
| ZRAE02B01 | 0.07 … 4.5 m |
| ZRME01B01 | 0 … 1 m |
| ZRME03B01 | 0 … 3.8 m |
| ZRMR02K01 | 0 … 1.5 m |
| RF505 | 0 … 1.5 m |
| RF508 | 0 … 1.6 m |
| RF258 | 0 … 1.5 m |
| ZRAF08K01 | 0 … 1.5 m |
| ZRDF03K01 | 0 … 6 m |
| ZRDF10K01 | 0 … 6 m |
