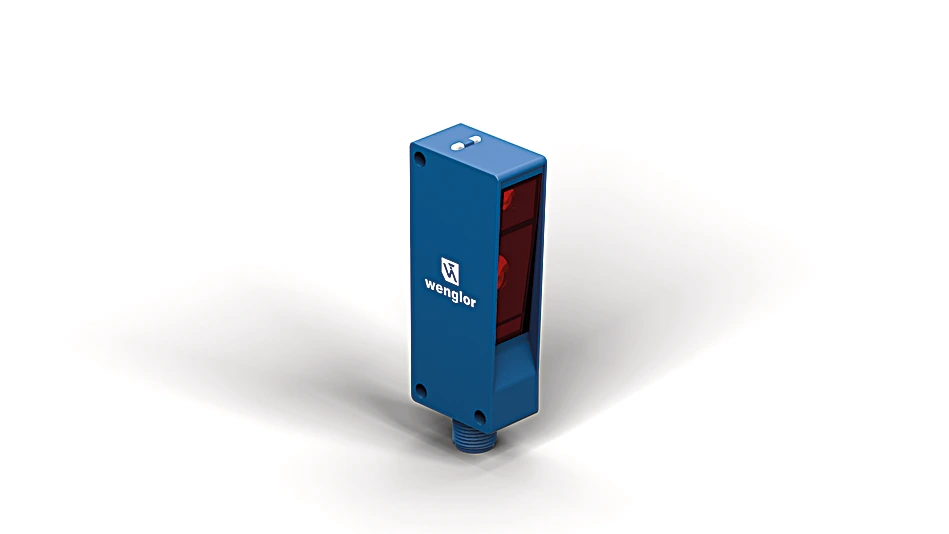

P1NH401 Reflex Sensor with Background Suppression
Reflex Sensor
In Stock
$396.00
per unit
Applications: Sensors & I/O
Description
The reflex sensor with background suppression works with red light according to the angle measurement principle and is suitable for the detection of objects against any background. The sensor always has the same switching distance, regardless of the color, shape and surface of the objects. Minimal height differences can be detected with the sensors and, for example, various parts can be reliably differentiated from each other. The IO-Link interface can be used to configure reflex sensors (PNP/NPN, NC/NO) and to output switching statuses.
Features at a Glance
- Condition monitoring
- Low switching distance deviation for black/white
- IO-Link 1.1
- Reliably detect objects against any background
Technical Data
Optical Data
| Range | 700 mm |
| Setting Range | 80 … 700 mm |
| Switching Hysteresis | < 5 % |
| Light Source | Red Light |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Supply Voltage with IO-Link | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 30 mA |
| Switching Frequency | 500 Hz |
| Switching Frequency (interference-free mode) | 250 Hz |
| Response time (interference-free mode) | 2 ms |
| Response Time | 1 ms |
| Temperature Drift (-20 °C < Tu < 60 °C) | < 5 % * |
| Temperature Range | -40 … 60 °C |
| Switching Output Voltage Drop | < 2 V |
| Switching Output/Switching Current | 100 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Interface | IO-Link V1.1 |
| Protection Class | III |
Mechanical Data
| Setting Method | Single-turn |
| Housing Material | Plastic, ABS/PC |
| Degree of Protection | IP67 IP68 |
| Connection | M12 × 1; 4-pin |
| Optic Cover | Plastic, PMMA |
| Weight | 30 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 2,028.3 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Output
| PNP NC, PNP NO | yes |
| IO-Link | yes |
Adjustable parameters
| Output | Push-pull NPN PNP |
| Other parameters | Off-delay On-delay Mode of operation Hysteresis Switching point Emitted light |
| All other parameters can be found in the product documentation. |
Standards and certificates
      |
Table 1
| Detection Range | 80 mm | 350 mm | 700 mm |
| Light Spot Diameter | 12 mm | 16 mm | 18 mm |
Connection Diagram
 |
Ctrl. Panel
|
30 = Switching Status/Contamination Warning
05 = Switching Distance Adjuster 68 = Power LED |

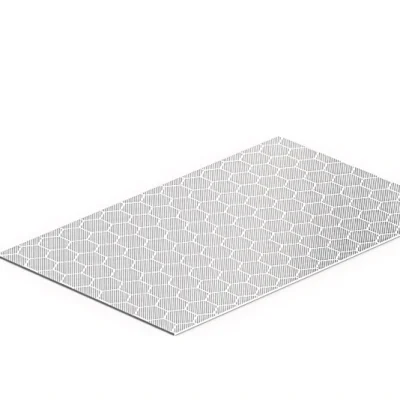

Complementary Products
|
