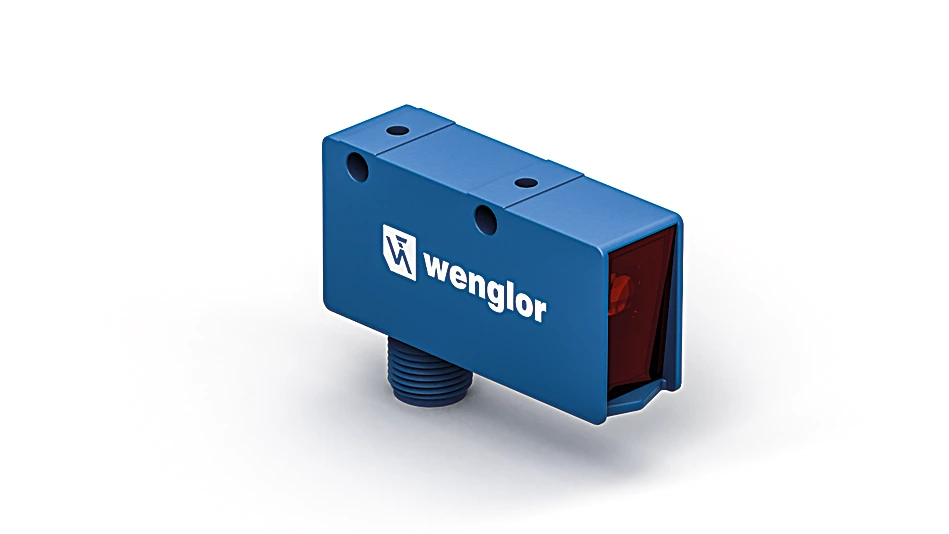

P1MK101 Retro-Reflex Sensor for Transparent Objects
Retro-Reflex Sensor
Applications: Sensors & I/O
Description
The retro-reflex sensor for transparent objects, such as clear glass, works with red light and a reflector. It has a IO-Link interface with a data storage function as well as additional configuration and diagnostic options. The interface can also be used to configure the sensor settings (PNP/NPN, NC/NO, switching threshold, error output) as well as for reading out switching statuses and signal values. The dynamic readjustment of the switching threshold function automatically adjusts this for contamination, aging, or temperature deviations, meaning that these factors have almost no effect on functionality.
Features at a Glance
- Dynamic readjustment of the switching threshold
- IO-Link 1.1
- Special for glass, PET and films
- High-end
- Wireless settings via NFC
Technical Data
Optical Data
| Range | 4,500 mm |
| Reference Reflector/Reflector Foil | RQ100BA |
| Clear Glass Recognition | yes |
| Smallest Recognizable Part | see Table 2 |
| Switching Hysteresis | < 5 % |
| Light Source | Red Light |
| Polarization Filter | yes |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | see Table 1 |
| Single-Lens Optic | yes |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Supply Voltage with IO-Link | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 20 mA |
| Switching Frequency | 1,000 Hz |
| Switching frequency (speed mode) | 2,000 Hz |
| Response Time | 0.5 ms |
| Response time (speed mode) | 0.25 ms |
| Temperature Drift | < 5 % |
| Temperature Range | -40 … 60 °C |
| Switching Output Voltage Drop | < 2 V |
| Switching Output/Switching Current | 100 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Lockable | yes |
| Teach Mode | NT, MT |
| Interface | IO-Link V1.1 |
| Data Storage | yes |
| Protection Class | III |
Mechanical Data
| Setting Method | Teach-in/NFC |
| Housing Material | Plastic, ABS/GF |
| Degree of Protection | IP67 IP68 |
| Connection | M12 × 1; 4-pin |
| Optic Cover | Plastic, PMMA |
| Weight | 17 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 1,629.76 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Output
| IO-Link | yes |
| PNP NC | yes |
| External teach-in input | yes |
| NFC interface | yes |
Adjustable parameters
| Output | Push-pull NPN PNP |
| Circuit | inactive Error output NC NC+NO NO |
| Other parameters | Off-delay On-delay Mode of operation Hysteresis Switching point Emitted light Dynamic readjustment |
| All other parameters can be found in the product documentation. |
Standards and certificates
       |
Table 1
| Working Distance | 1 m | 2 m | 4,5 m |
| Light Spot Diameter | 50 mm | 90 mm | 180 mm |
Table 2
| Distance, Sensor to Reflector | 1 m | 2 m | 4,5 m |
| Smallest Recognizable Part | 1,5 mm | 4 mm | 10 mm |
Connection Diagram
 |
Ctrl. Panel
|
68 = Power LED
06 = Teach Button 30 = Switching Status/Contamination Warning 2a = NFC interface |
Reflector data
| RQ100BA | 0 … 4.5 m |
| RE18040BA | 0 … 3 m |
| RQ84BA | 0 … 3.5 m |
| RR84BA | 0 … 4 m |
| RE9538BA | 0 … 1.5 m |
| RE6151BM | 0 … 3.6 m |
| RR50_A | 0 … 2.3 m |
| RE6040BA | 0 … 3.5 m |
| RE8222BA | 0 … 2 m |
| RE3220BM | 0 … 1.2 m |
| RE6210BM | 0 … 1 m |
| RR25_M | 0 … 1.2 m |
| RR25KP | 0 … 0.8 m |
| RR21_M | 0 … 1 m |
| ZRAE02B01 | 0 … 2 m |
| ZRME01B01 | 0 … 0.6 m |
| ZRME03B01 | 0 … 2.1 m |
| ZRMR02K01 | 0 … 0.8 m |
| ZRMS02_01 | 0 … 1 m |
| RF505 | 0 … 1.2 m |
| RF508 | 0 … 1.1 m |
| RF258 | 0 … 1 m |
| ZRDF03K01 | 0 … 3 m |
