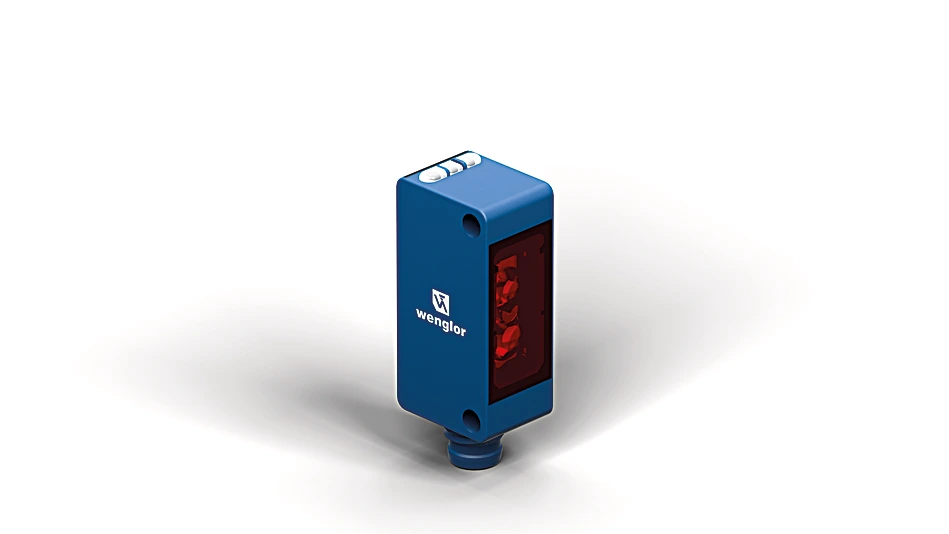

P1KY103 Laser Distance Sensor Time of Flight
Laser Distance Sensor
In Stock
$363.00
per unit
Applications: Sensors & I/O
Description
The high-performance distance sensor with compact format accurately determines distance between the sensor and the object on the basis of transit time measurement. Two mutually independent switching outputs and the intelligent IO-Link interface permit multifunctional use for precisely ascertaining distance to an object, or for detecting the object at any two switching points. A large working range of 0 to 1,500 mm ensures top performance with a miniature format and flexibility where range is concerned. Thanks to laser class 1, the sensor’s laser beam is harmless for the human eye.
Features at a Glance
- Miniature design
- 2 mutually independent switching outputs
- IO-Link interface
- Large working range
Technical Data
Optical Data
| Working Range | 0 … 1,500 mm |
| Setting Range | 50 … 1,500 mm |
| Switching Hysteresis | < 30 mm |
| Light Source | Laser (infrared) |
| Wavelength | 940 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 1 |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | see Table 1 |
| Reflector required | no |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Supply Voltage with IO-Link | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 15 mA |
| Switching Frequency | 10 Hz |
| Response Time | < 36 ms |
| Temperature Drift | < 2.5 % |
| Temperature Range | -30 … 50 °C |
| Number of Switching Outputs | 2 |
| Switching Output Voltage Drop | < 2.5 V |
| Switching Output/Switching Current | 100 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Lockable | yes |
| Interface | IO-Link V1.1 |
| Protection Class | III |
| FDA Accession Number | 1720547-001 |
Mechanical Data
| Setting Method | Teach-In |
| Housing Material | Plastic, ABS/PC Plastic, PC |
| Optic Cover | Plastic, PMMA |
| Degree of Protection | IP67 IP68 |
| Connection | M8 × 1; 4-pin |
| Weight | 28 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 2,266.52 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Output
| NPN NO | yes |
| IO-Link | yes |
Adjustable parameters
| Circuit | NC NO |
| Other parameters | Off-delay On-delay Hysteresis Emitted light Teach mode Switching point |
| All other parameters can be found in the product documentation. |
Standards and certificates
      |
Table 1
| Working Distance | 350 mm | 700 mm | 1500 mm |
| Light Spot Diameter | 14 mm | 25 mm | 42 mm |
Connection Diagram
|
– = supply voltage 0 V
+ = supply voltage + E/A1 = programmable input/output / IO-Link E/A2 = programmable input/output |
Ctrl. Panel
|
68 = Power LED
06 = Teach Button 5a = Switching Status Indicator, O1 6a = Switching Status Indicator, O2 |
