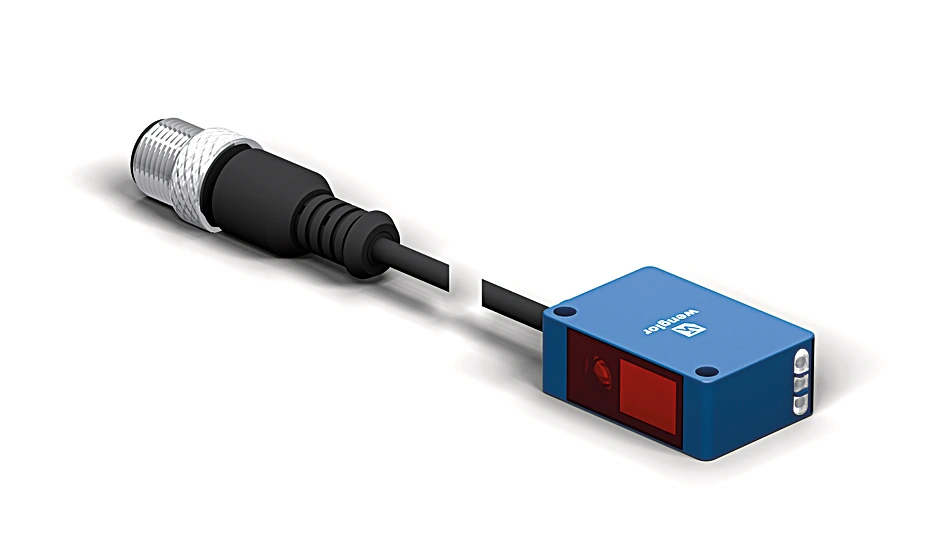

P1KY002 Laser Distance Sensor Time of Flight
Laser Distance Sensor
In Stock
$627.00
per unit
Applications: Sensors & I/O
Description
These miniature sensors determine distance between the sensor and the object by means of transit time measurement. wenglor’s interference-free technology (wintec) is revolutionizing sensor technology: it prevents numerous sensors arranged directly opposite or next to each other from interfering with one another. The sensors reach a very high switching frequency and use laser class 1, which is safe for the human eye.
Features at a Glance
- Secure detection of black objects also in extremely inclined positions with wintec
- No mutual interference with wintec
- Interference-free towards gloss in the background with wintec
- Reliable in case of glossy objects with wintec
- Miniature design
Technical Data
Optical Data
| Working Range | 0 … 1,000 mm |
| Setting Range | 100 … 1,000 mm |
| Switching Hysteresis | < 20 mm |
| Light Source | Laser (red) |
| Wavelength | 680 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 1 |
| Beam Divergence | < 16 mrad |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | see Table 1 |
| Triple Dot Laser | yes |
| Reflector required | no |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 30 mA |
| Switching Frequency | 1,000 Hz |
| Response Time | 0.5 ms |
| Temperature Drift | < 2.5 % |
| Temperature Range | -40 … 50 °C |
| Number of Switching Outputs | 2 |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 100 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
| FDA Accession Number | 1620293-001 |
Mechanical Data
| Setting Method | Potentiometer |
| Housing Material | Plastic, ABS/PC Plastic, PC |
| Optic Cover | Plastic, PMMA |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 4-pin |
| Cable length (L) | 200 mm |
| Weight | 21 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 996.97 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Output
| PNP NC, PNP NO | yes |
Adjustable parameters
| Circuit | NC NO NC+NO |
| All other parameters can be found in the product documentation. |
Standards and certificates
      |
Table 1
| Working Distance | 100 mm | 500 mm | 1000 mm |
| Light Spot Diameter | 4 mm | 7 mm | 15 mm |
Connection Diagram
 |
Ctrl. Panel
|
68 = Power LED
05 = Switching Distance Adjuster 30 = Switching Status/Contamination Warning |
