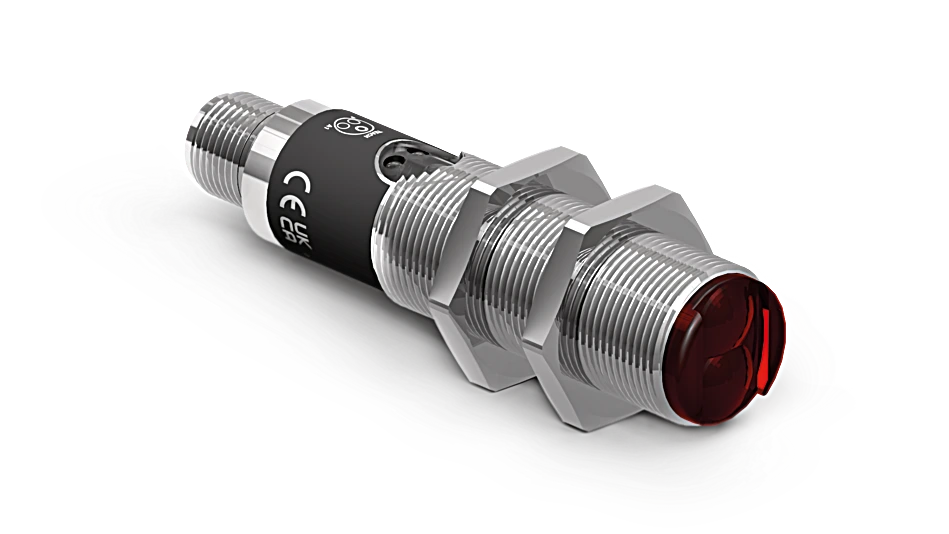

P18H001 Reflex Sensor with Background Suppression
Reflex Sensor
In Stock
$231.00
per unit
Applications: Sensors & I/O
Description
The reflex sensor with background suppression works with red light according to the angle measurement principle and is suitable for the detection of objects against any background. The sensor always has the same switching distance, regardless of the color, shape and surface of the objects. Minimal height differences can be detected with the sensors and, for example, various parts can be reliably differentiated from each other. The IO-Link interface can be used to configure reflex sensors (PNP/NPN, NC/NO) and to output switching statuses.
Features at a Glance
- Stainless steel housing
- IO-Link 1.1
- Reliably detect objects against any background
- Red light
- Teach-in, external teach-in
Technical Data
Optical Data
| Range | 120 mm |
| Setting Range | 35 … 120 mm |
| Switching Hysteresis | < 5 % |
| Light Source | Red Light |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Supply Voltage with IO-Link | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 20 mA |
| Switching Frequency | 750 Hz |
| Switching Frequency (interference-free mode) | 500 Hz |
| Response time (interference-free mode) | 1 ms |
| Response Time | 0.67 ms |
| Temperature Drift | < 5 % |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 100 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Lockable | yes |
| Teach Mode | HT, VT |
| Interface | IO-Link V1.1 |
| Protection Class | III |
Mechanical Data
| Setting Method | Teach-In |
| Housing Material | Stainless steel, V2A (1.4305 / 303) |
| Full Encapsulation | yes |
| Degree of Protection | IP67 IP68 |
| Connection | M12 × 1; 4-pin |
| Weight | 69 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 1,244.24 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × MUTTER-M18-E003 hex nut 1 × sensor |
Output
| PNP NO | yes |
| External teach-in input | yes |
| IO-Link | yes |
Adjustable parameters
| Output | Push-pull NPN PNP |
| Circuit | Error output NC NC+NO NO |
| Other parameters | Off-delay On-delay Mode of operation Switching point Emitted light Teach-in mode |
| All other parameters can be found in the product documentation. |
Standards and certificates
      |
Table 1
| Detection Range | 60 mm | 120 mm |
| Light Spot Diameter | 2 mm | 4 mm |
Connection Diagram
 |
Ctrl. Panel
|
06 = Teach Button
30 = Switching Status/Contamination Warning 68 = Power LED |
