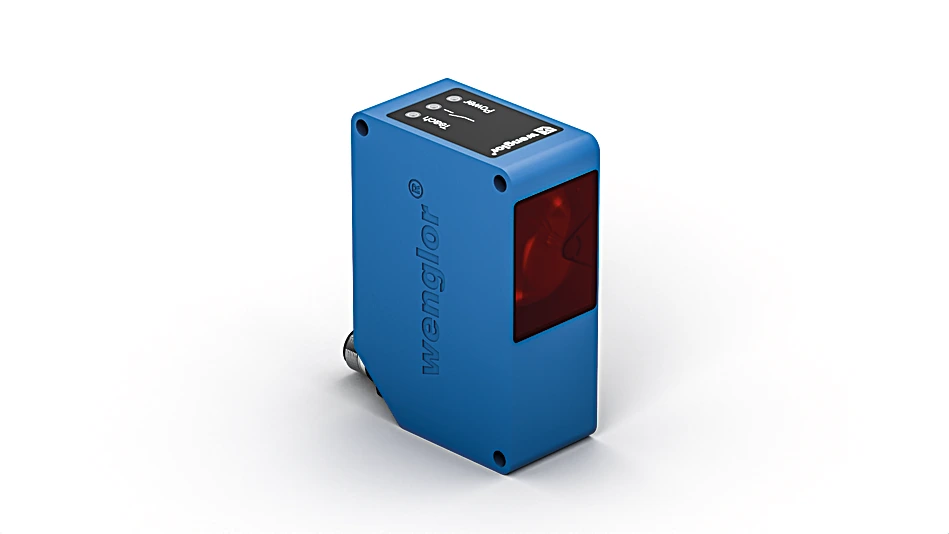

OY2TA403AT235 Laser Distance Sensor Time of Flight
Laser Distance Sensor
In Stock
$662.00
per unit
Applications: Sensors & I/O
Description
These sensors have scratch-resistant optics and measure the distance between the sensor and the object in accordance with the principle of transit time measurement. The sensor also reaches a very high switching frequency. Artificial light (e.g. from an energy saving lamp) or the background does not influence the correct sensor function. The working range is also valid for dark objects.
Features at a Glance
- Working range up to 4 m
- Scratch-resistant optic cover
- Very high switching frequency
Technical Data
Optical Data
| Working Range | 0 … 4,000 mm |
| Setting Range | 250 … 4,000 mm |
| Switching Hysteresis | < 25 mm |
| Light Source | Laser (red) |
| Wavelength | 660 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 2 |
| Beam Divergence | < 2 mrad |
| Max. Ambient Light | 10,000 Lux |
| Reflector required | no |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 70 mA |
| Switching Frequency | 1,000 Hz |
| Response Time | 500 µs |
| Temperature Drift | < 2 % |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| Switching Output/Switching Current | 200 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
| FDA Accession Number | 0820345-001 |
Mechanical Data
| Setting Method | Teach-In |
| Housing Material | Plastic, ABS Plastic, PC |
| Optic Cover | Plastic, PMMA |
| Degree of Protection | IP68 |
| Connection | M12 × 1; 5-pin |
| Weight | 84 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 628.4 a |
General Data
| Scope of delivery | 1 × BEF-SET-34 mounting set 1 × initial start-up instructions 1 × laser warning sign 1 × sensor |
Output
| PNP NC, PNP NO | yes |
| External teach-in input | yes |
Standards and certificates
      |
Table 1
| Working Distance | 0 m | 4 m |
| Light Spot Diameter | 5 mm | < 8 mm |
Connection Diagram
 |
Ctrl. Panel
|
01 = Switching Status Indicator
06 = Teach Button 68 = Power LED |
