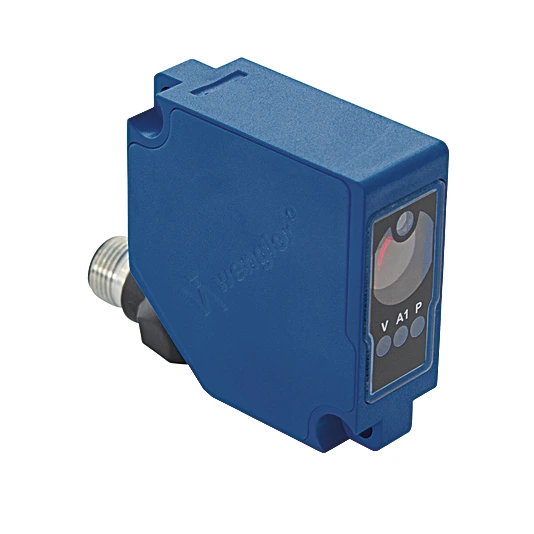

OY1PS941 Laser Distance Sensor Time of Flight
Laser Distance Sensor
In Stock
$756.00
per unit
Applications: Sensors & I/O
Description
These sensors have scratch-resistant optics and the emitted light can be switched off. They use the transit time measurement principle to measure the distance between the sensor and the object. wenglor interference-free technology (wintec) has revolutionized sensor technology: It makes it possible to mount several sensors directly next to, or opposite each other without the sensors influencing each other. The sensors reach a very high switching frequency and use laser class 1, which is safe for the human eye.
Features at a Glance
- Analog output (0…10 V/4…20 mA)
- Secure detection of black objects also in extremely inclined positions with wintec
- Reliable in case of glossy objects with wintec
- 2 mutually independent switching outputs
- IO-Link interface
Technical Data
Optical Data
| Working Range | 50 … 3,050 mm |
| Laser Class (EN 60825-1) | 1 |
Electrical Data
| Supply Voltage | 18 … 30 V DC |
| Analog Output | 0…10 V |
Mechanical Data
| Weight | 42 g |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
