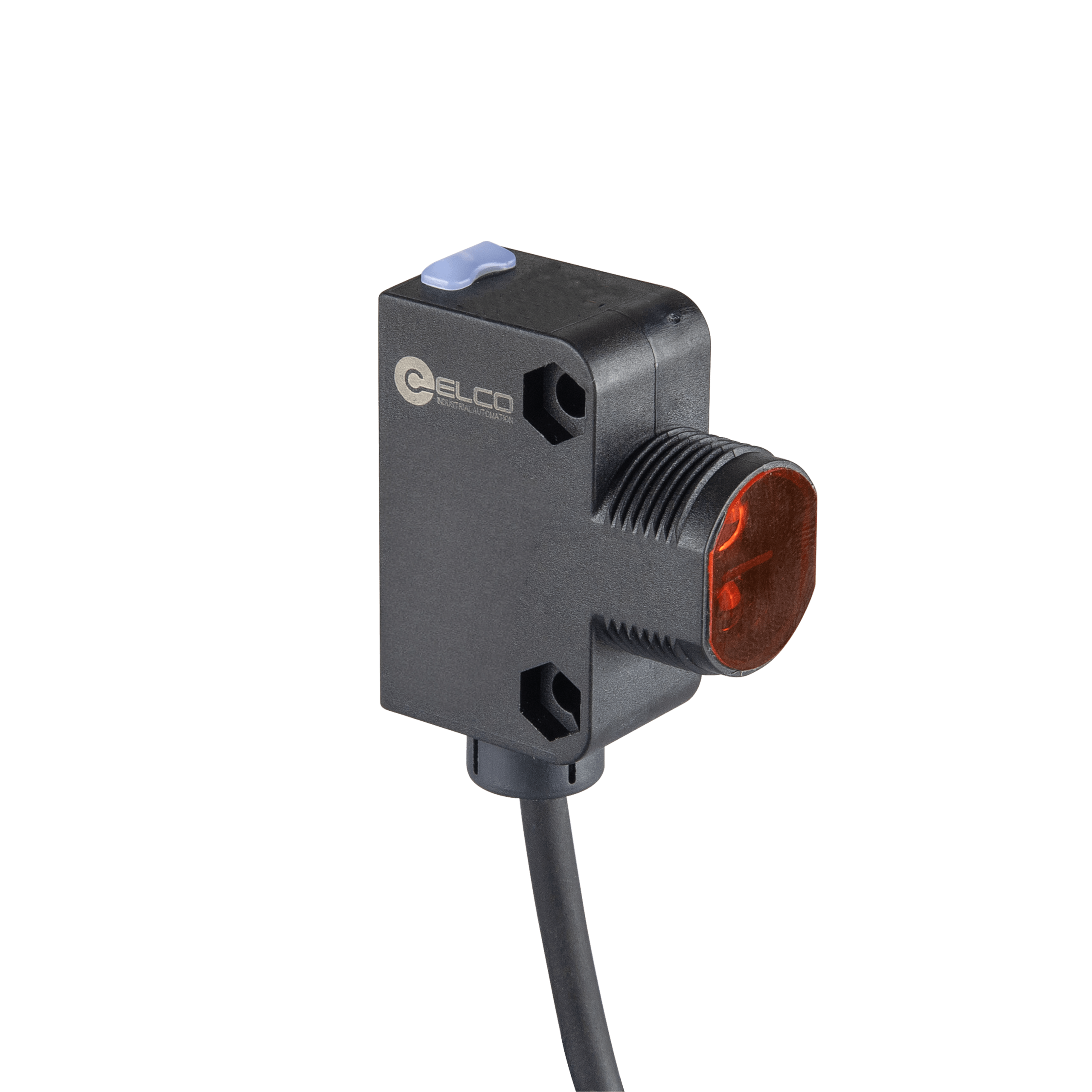

OSQ18-SL306 Photoelectric Sensor
Photoelectric Sensor, OSQ18-Series, Opposed, Emitter, Laser beam, Operating range 30 m, 10…30V DC, -25…55°C, IP67, Cable 2 m
In Stock
$40.25
per unit
Applications: Sensors & I/O
Technical Data
| Detection method | Opposed (Emitter) |
| Sensing range | 30 m |
| Light source | Red laser / Class 1 |
| Spot size | 7 mm @ 5 m |
| Supply voltage | 10 … 30 V DC |
| Ambient temperature | -25 … +55 ℃ |
| Housing material | PBT + ABS |
| Connection | Cable |
| IP rating | IP67 |
| Connection type | 2 m, TPU |
| Anti-ambient light | ≤ 5000 lux |
