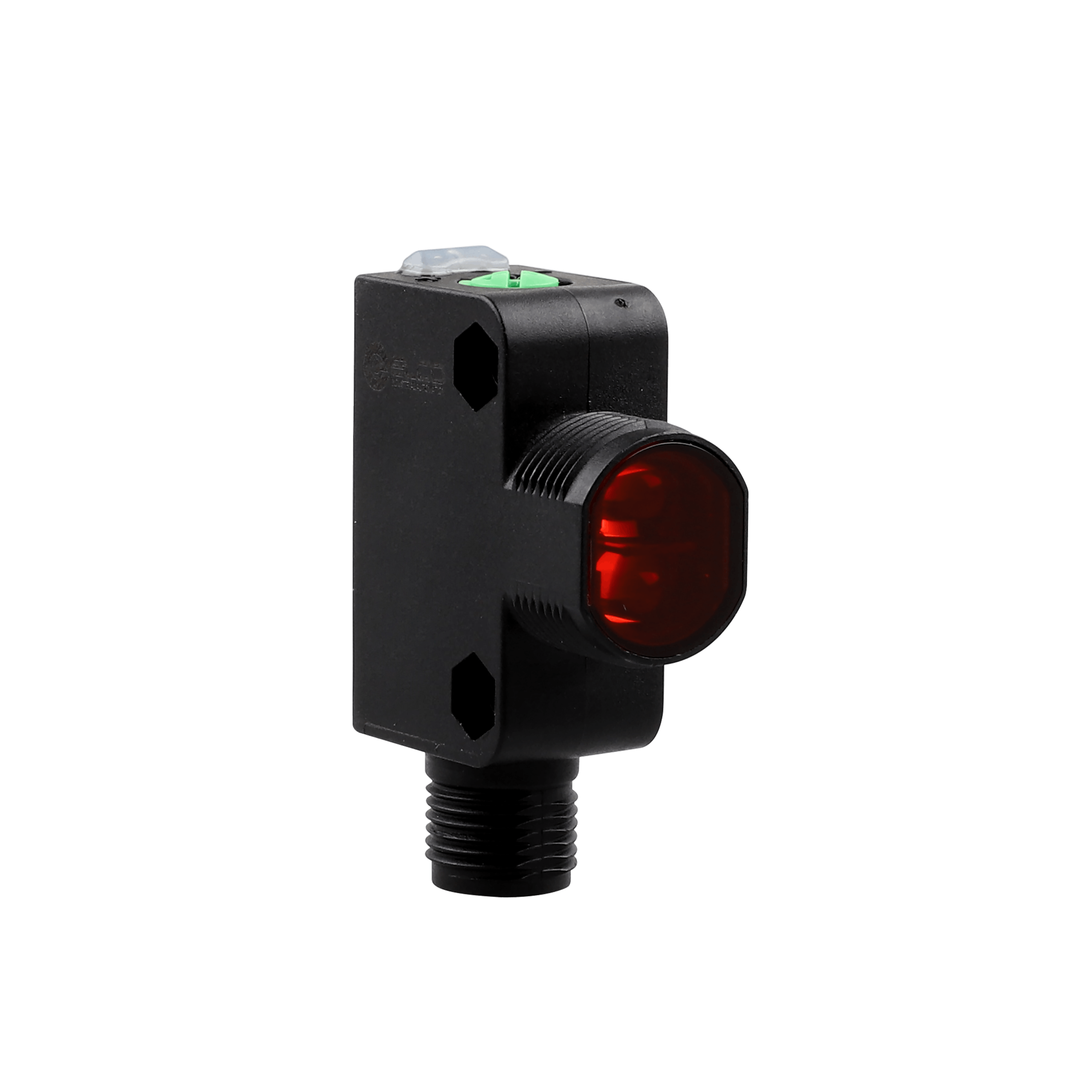

OSQ18-K400VN6Q Photoelectric Sensor
Photoelectric Sensor, OSQ18-Series, Diffused, Red beam, Operating range 400 mm, NPN, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, M12 4-pin connector
In Stock
$37.01
per unit
Applications: Sensors & I/O
Technical Data
| Detection method | Diffused |
| Sensing range | 400 mm |
| Light source | Red LED |
| Spot size | 23 mm @ 400 mm |
| Output type | NPN |
| Supply voltage | 10 … 30 V DC |
| Switching frequency | 800 Hz |
| Connection | Connector |
| Connection type | M12, 4-pin |
| Load current | ≤ 200 mA |
| IP rating | IP67 |
| Ambient temperature | -25 … +55 ℃ |
| Anti-ambient light | ≤ 5000 lux |
| Housing material | PBT + ABS |
| Output status | L.O + D.O |
