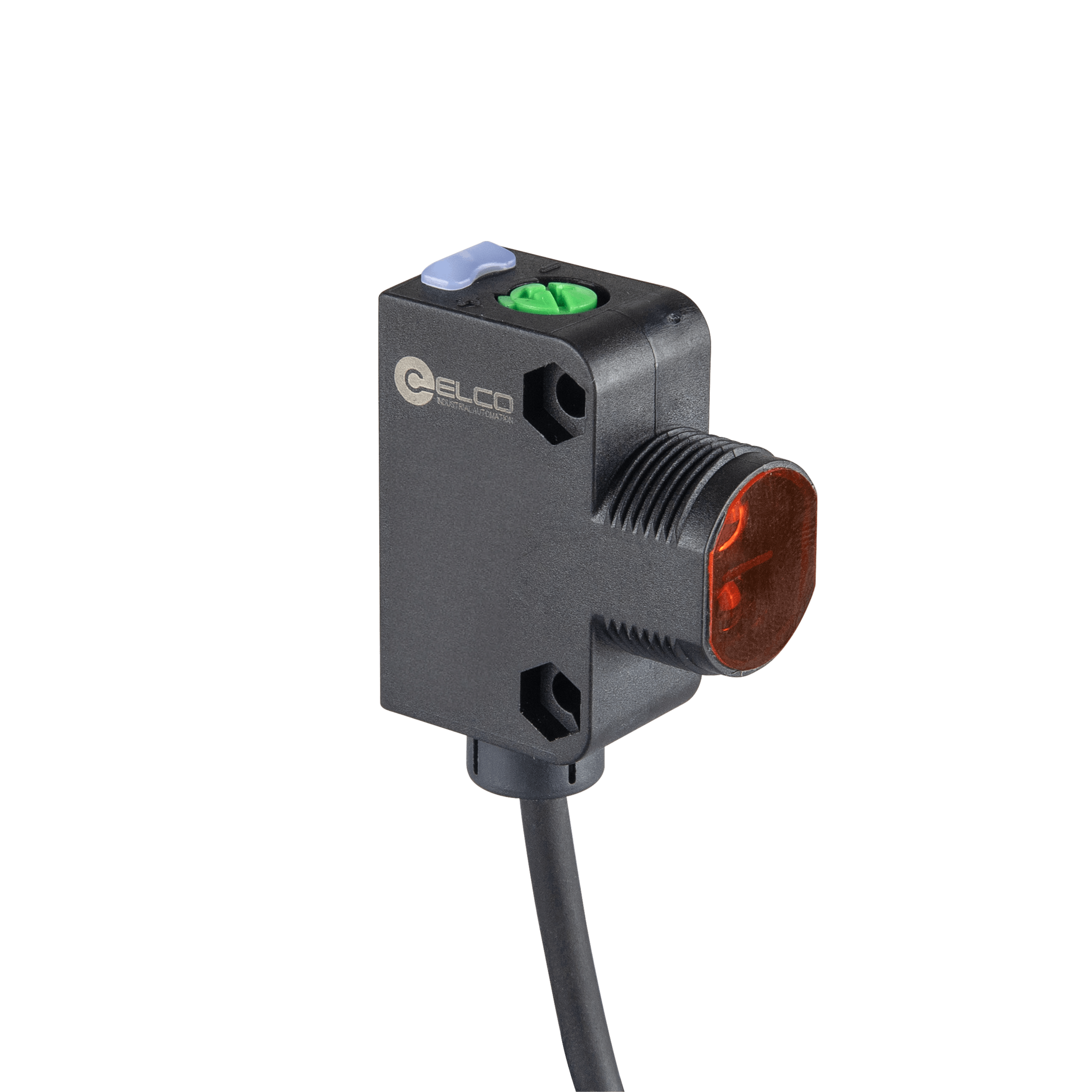

OSQ18-EVP6 Photoelectric Sensor
Photoelectric Sensor, OSQ18-Series, Opposed, Receiver, Infrared beam, Operating range 25 m, PNP, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, Cable 2 m
In Stock
$28.58
per unit
Applications: Sensors & I/O
Technical Data
| Output type | PNP |
| Output status | L.O + D.O |
| Switching frequency | 800 Hz |
| Supply voltage | 10 … 30 V DC |
| Connection | Cable |
| Anti-ambient light | ≤ 5000 lux |
| Detection method | Opposed (Receiver) |
| Sensing range | 25 m |
| Connection type | 2 m, TPU |
| IP rating | IP67 |
| Load current | ≤ 200 mA |
| Housing material | PBT + ABS |
| Ambient temperature | -25 … +55 ℃ |
