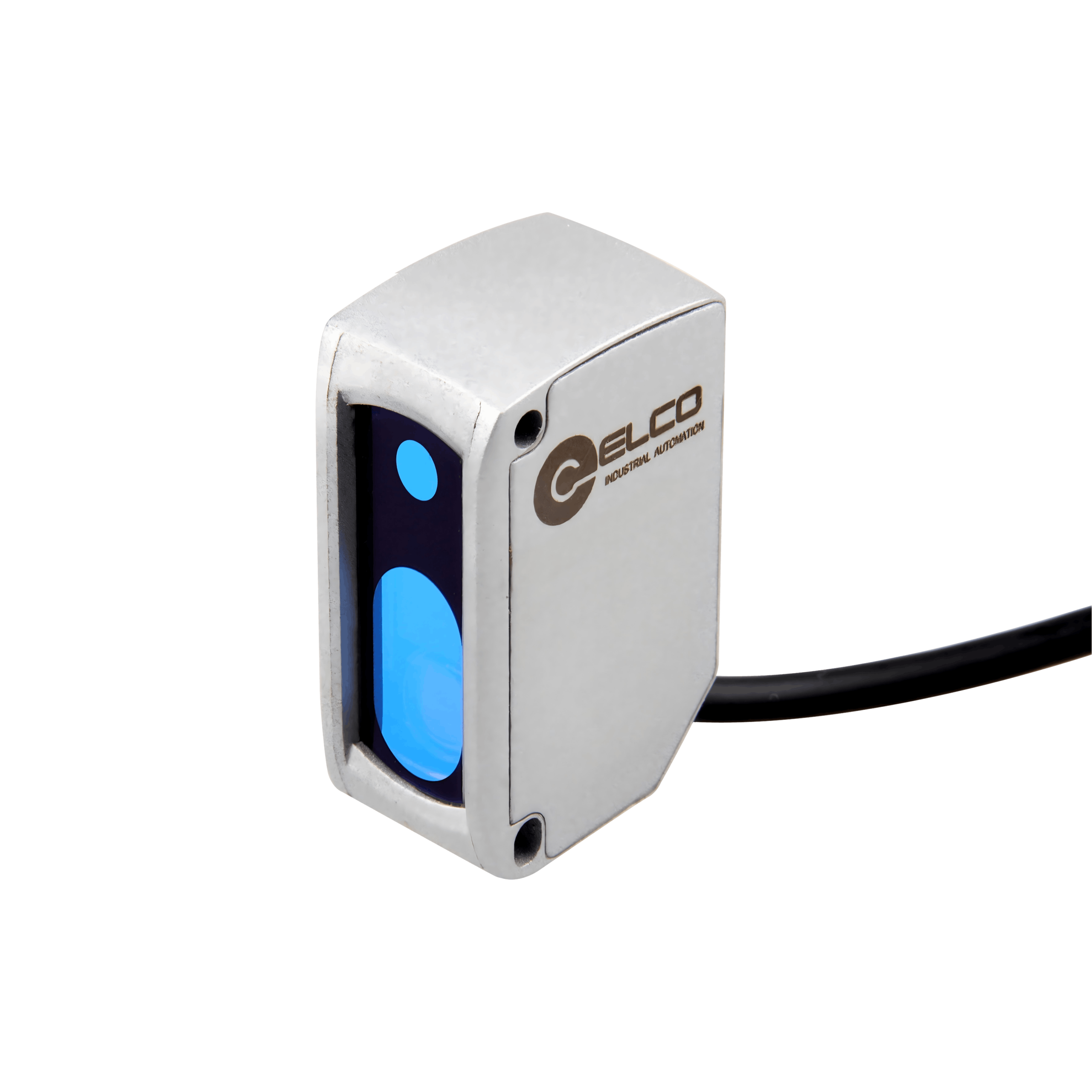

OSM42-KL2000C2B6 Distance Sensor
Distance Sensor, OSM42-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 150…2000 mm, Resolution 1 mm, 2 x Push-Pull, Teach button, 10…30V DC, -10…50°C, IP67, 2 m Cable
In Stock
$222.33
per unit
Applications: Sensors & I/O
Technical Data
| Detection method | CMOS ranging |
| Sensing range | 150 … 2000 mm |
| Light source | Red laser / Class 2 |
| Spot size | 3 mm @ 2000 mm |
| Resolution | 1 mm |
| Output type | 2 × NPN / PNP |
| Output status | L.O / D.O |
| Supply voltage | 10 … 30 V DC |
| Load current | ≤ 150 mA |
| Anti-ambient light | ≤ 5000 lux |
| Housing Material | Die-cast zinc |
| Connection | Cable |
| IP rating | IP67 |
| Connection type | 2 m, PVC |
| Response time | 30 HZ |
| Ambient temperature | -10 … +50 ℃ |
| Repeatability | 2 mm @ 600 mm & 5 mm @ 800 mm & 10 mm @ 2000 mm |
