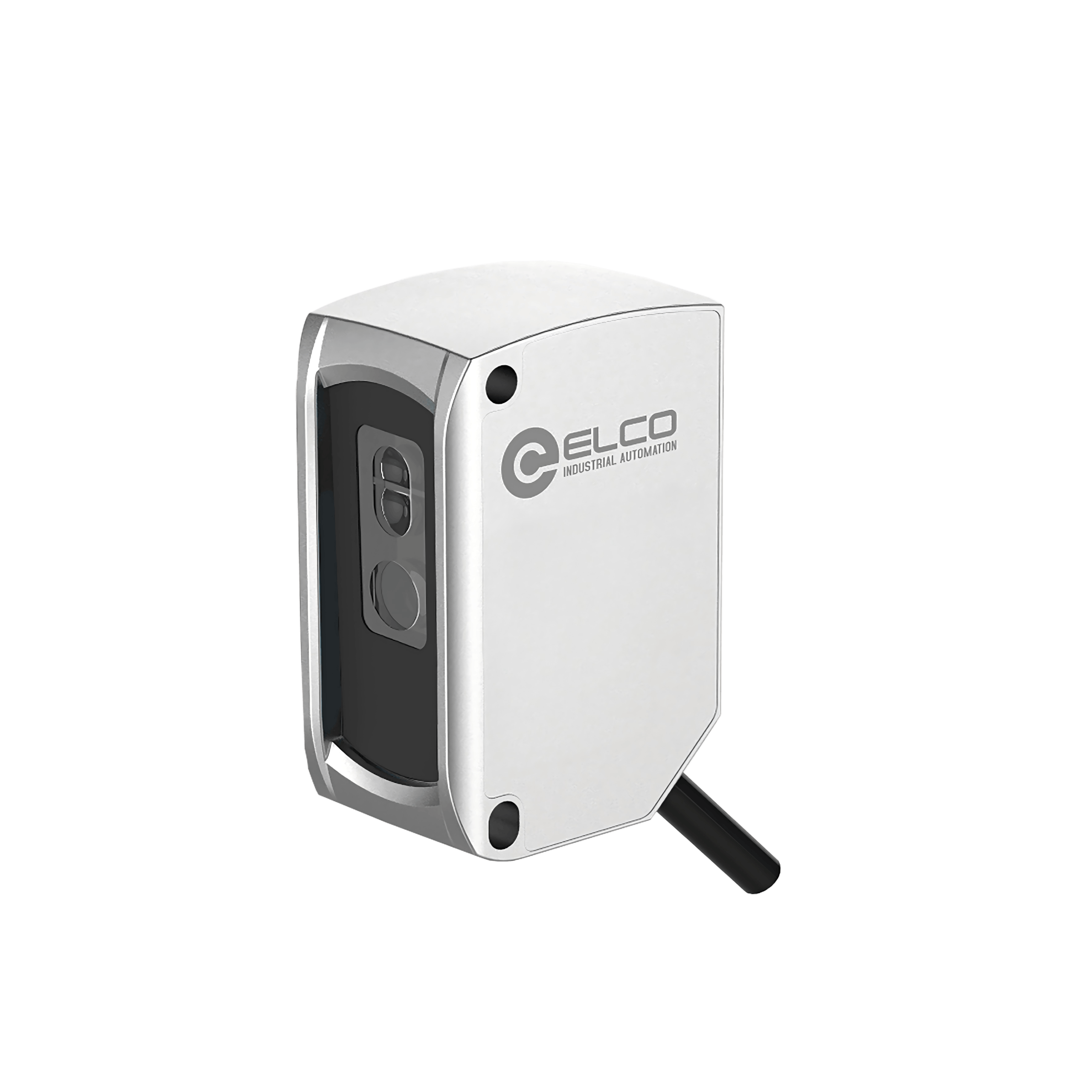

OSM42-K4000C2B6 Distance Sensor
Distance Sensor, OSM42-Series, Laser Distance Sensor (TOF), Infared laser + Laser indication, Operating range 50…4000 mm, Resolution 5 mm, 2 x Push-Pull, Teach button, 10…30V DC, -10…50°C, IP67, 2 m Cable
In Stock
$217.70
per unit
Applications: Sensors & I/O
Technical Data
| Light source | Infrared laser + Red LED indication / Class 1 |
| Connection | Cable |
| IP rating | IP67 |
| Connection type | 2 m, PVC |
| Ambient temperature | -10 … +50 ℃ |
| Repeatability | 5 mm |
| Spot size | 13 × 8.5 cm @ 4 m |
| Response time | 30 HZ |
| Anti-ambient light | ≤ 5000 lux |
| Housing Material | Die-cast zinc |
| Load current | ≤ 150 mA |
| Supply voltage | 10 … 30 V DC |
| Output status | L.O / D.O |
| Output type | 2 × NPN / PNP |
| Resolution | 3 mm |
| Detection method | TOF ranging |
| Sensing range | 50 … 4000 mm |
