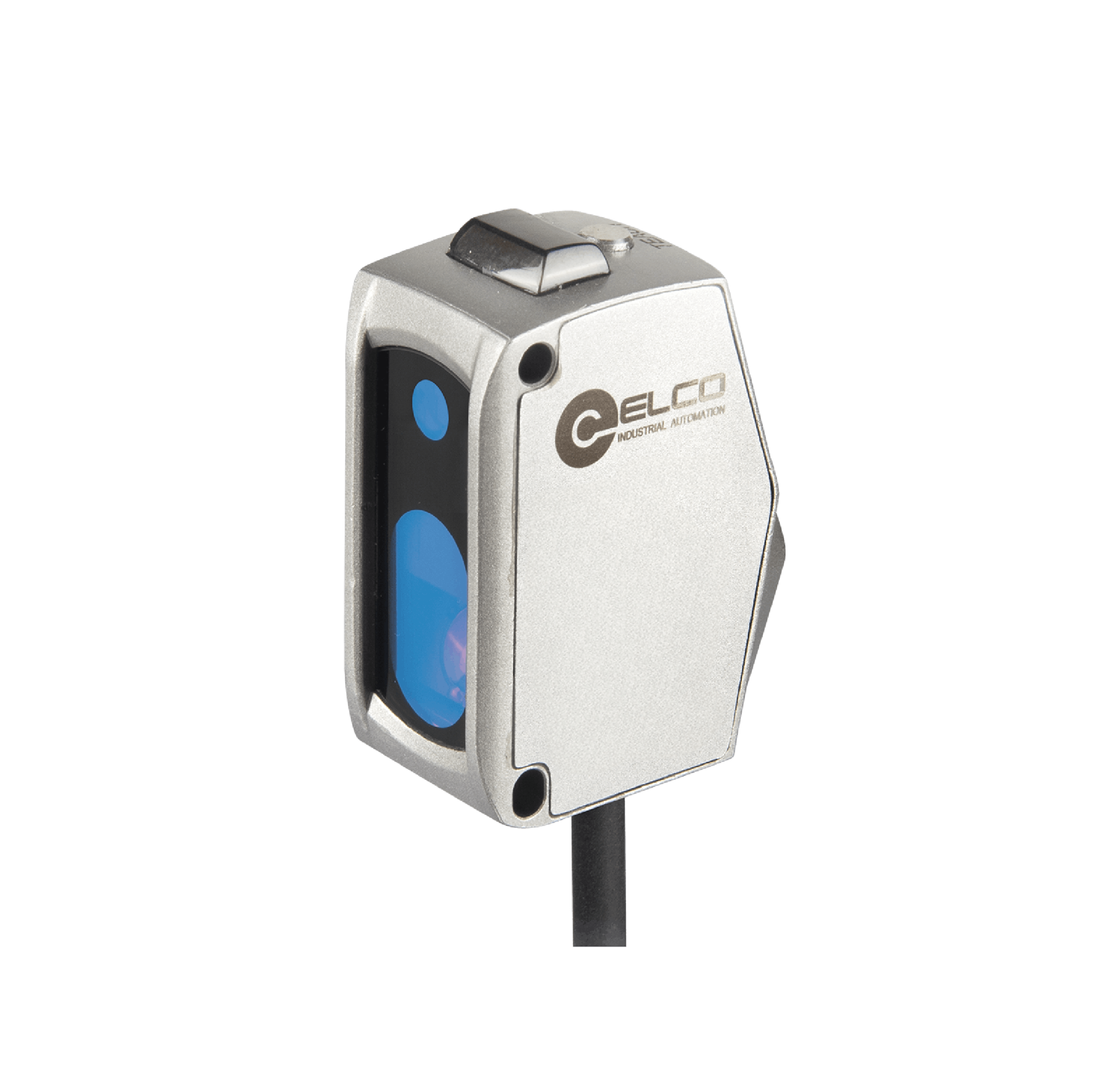

OSM40-KL160CB6/485 Distance Sensor
Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 60…160 mm, Resolution 0.01 mm, NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, Cable 2 m
In Stock
$254.75
per unit
Applications: Sensors & I/O
Technical Data
| Anti-ambient light | ≤ 3000 lux |
| Connection | Cable |
| IP rating | IP67 |
| Connection type | 2 m, PVC |
| Housing Material | Stainless steel |
| Ambient temperature | -10 … +50 ℃ |
| Light source | Red laser / Class 2 |
| Spot size | 0.2 mm @100 mm |
| Repeatability | 0.1 mm @ 60 … 160 mm |
| Response time | 1.5 ms / 5 ms / 10 ms |
| Resolution | 0.01 mm |
| Load current | ≤ 150 mA |
| Supply voltage | 10 … 30 V DC |
| Detection method | CMOS ranging |
| Output status | L.O / D.O |
| Output type | NPN / PNP & RS-485 |
| Sensing range | 60 … 160 mm |
