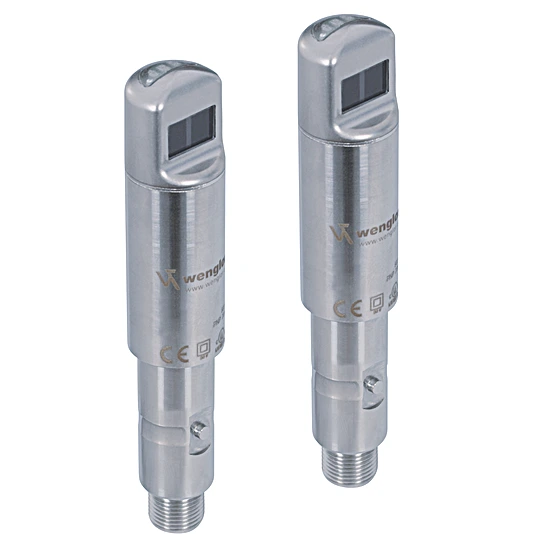

OSII403Z0103 Through-Beam Sensor
Through-Beam Sensor
In Stock
$264.92
per unit
Applications: Sensors & I/O
Description
The photoelectronic sensors in the hygienic housing are distinguished by a captive optic cover and food-safe, FDA-compliant materials. The hygienic design with no corners or edges enables optimal flow of cleaning agents. The laser-welded 316L stainless steel housing (1.4404/V4A) is resistant to high-pressure cleaning (degree of protection IP69K) and suitable for cleaning-intensive applications. When combined with the available accessories, gap-free installation is guaranteed for the highest hygiene requirements. Setting is performed by means of touch teach-in through the hermetically sealed housing.
Features at a Glance
- Hygienic design makes it easy to clean
- Made with food safe materials that are FDA approved
- Touch teach-in, external teach-in
- Waterproof (IP68/IP69K)
Technical Data
Optical Data
| Range | 4,000 mm |
| Light Source | Red Light |
| Service Life (T = +25 °C) | 100,000 h |
| Opening Angle | 3 ° |
Electrical Data
| Sensor Type | Emitter |
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Temperature Drift | < 10 % |
| Temperature Range | -25 … 60 °C |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Teach Mode | NT, MT, XT |
| Test input | yes |
| Protection Class | III |
Mechanical Data
| Setting Method | Teach-In |
| Housing Material | Stainless steel, V4A (1.4404 / 316L) |
| Degree of Protection | IP69K IP68 |
| Connection | M12 × 1; 4-pin |
| Optic Cover | Plastic, PMMA (FDA) |
| Material Control Panel | Plastic, PC (FDA) |
| Weight | 106 g |
General Data
| Approvals | Ecolab FDA compliant |
Standards and certificates
      |
Connection Diagram
 |
Ctrl. Panel
|
04 = Function Indicator
|
