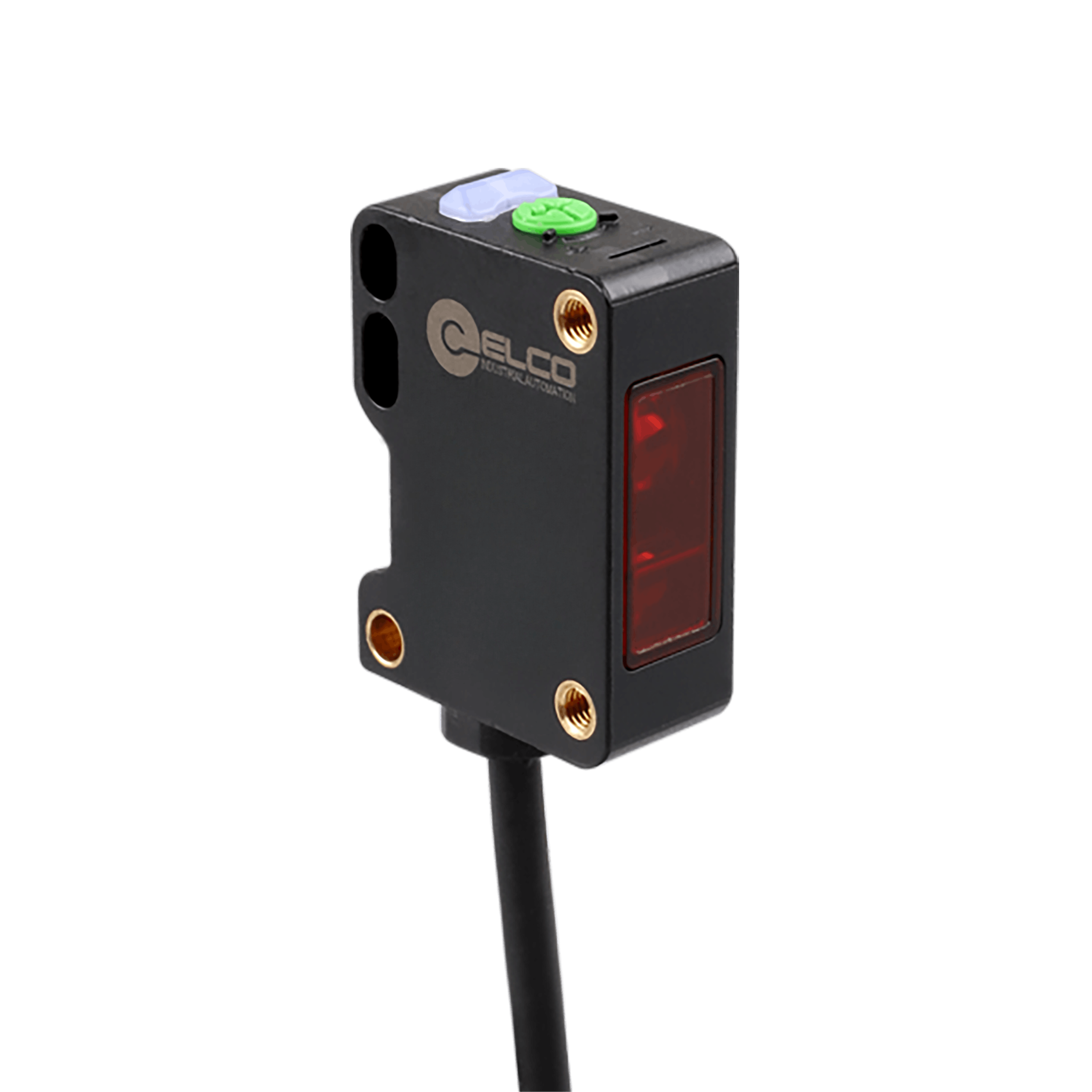

OS20-AK300CP6 Photoelectric Sensor
Photoelectric Sensor, OS20-Series, Diffused with BGS, Red beam, Operating range 300 mm, PNP, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, 2 m cable
In Stock
$60.21
per unit
Applications: Sensors & I/O
Technical Data
| Connection type | 2 m, PVC |
| Detection method | BGS Diffused |
| Sensing range | 6 … 300 mm |
| Light source | Red LED |
| Spot size | 5 mm @ 200 mm |
| Output type | PNP |
| Supply voltage | 10 … 30 V DC |
| Ambient temperature | -25 … +55 ℃ |
| Output status | L.O / D.O |
| Switching frequency | 400 Hz |
| Connection | Cable |
| IP rating | IP67 |
| Housing material | PC + PBT |
| Load current | ≤ 100 mA |
| Anti-ambient light | ≤ 10000 lux |
