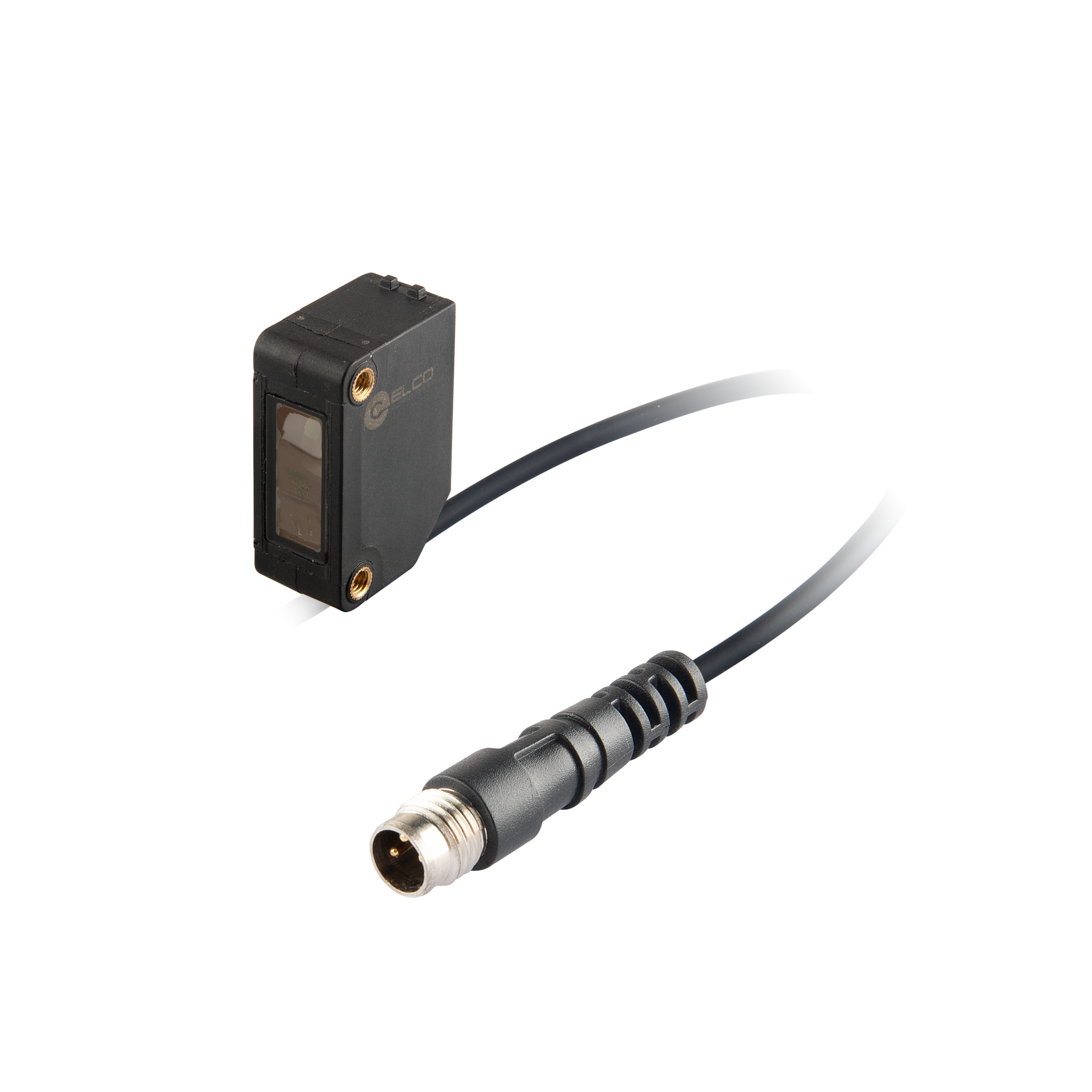

OS10U-TRPCP6-0.3-Q8 Photoelectric Sensor
Elco Automation | OS10U-TRPCP6-0.3-Q8

OS10U-TRPCP6-0.3-Q8 Photoelectric Sensor

Photoelectric Sensor, OS10U-Series, Retro-reflective vitreous body detect, Blue beam, Operating range 2 m, PNP, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 1000 Hz, IP67, M8 4-pin connector

In Stock
$80.13 per unit

Applications: Sensors & I/O

Technical Data

Detection method Coaxial retro-reflective
Switching frequency 1000 Hz
Load current ≤ 200 mA
Ambient temperature -25 … +55 ℃
Housing material PC + PBT
Special characteristics Vitreous body detect
Sensing range 2 m
Light source Blue LED
Spot size 6 cm @ 2m
Output type PNP
Output status L.O / D.O
Supply voltage 10 … 30 V DC
Anti-ambient light ≤ 3000 lux
Connection M8 Pigtail
Connection type 0.3 m cable + M8, 4-pin
IP rating IP67

Documentation

3D Drawings

  • Icon

    3D Drawing - CAD_SP_OS10U-TRP_V1.0.stp

    1 file(s) 1.58 MB
    Download
  • Icon

    3D Drawing - CAD_SP_OS10U-TRP-0.3-Q8_V1.0.stp

    1 file(s) 5.65 MB
    Download

Certificates & Compliance

  • Icon

    CE - CE_SP_OS10U_V1.0_EN.pdf

    1 file(s) 734.78 KB
    Download

Datasheets

  • Icon

    Datasheet - DS_SP_OS10U-TRP_V1.0_EN.pdf

    1 file(s) 581.20 KB
    Download

Technical Manuals

  • Icon

    Manual - UM_SP_OS10U-TRP-0.3-Q8_V1.0_EN&CN.pdf

    1 file(s) 1.50 MB
    Download
  • Icon

    Manual - UM_SP_OS10U-TRP_V1.0_EN&CN.pdf

    1 file(s) 994.64 KB
    Download
