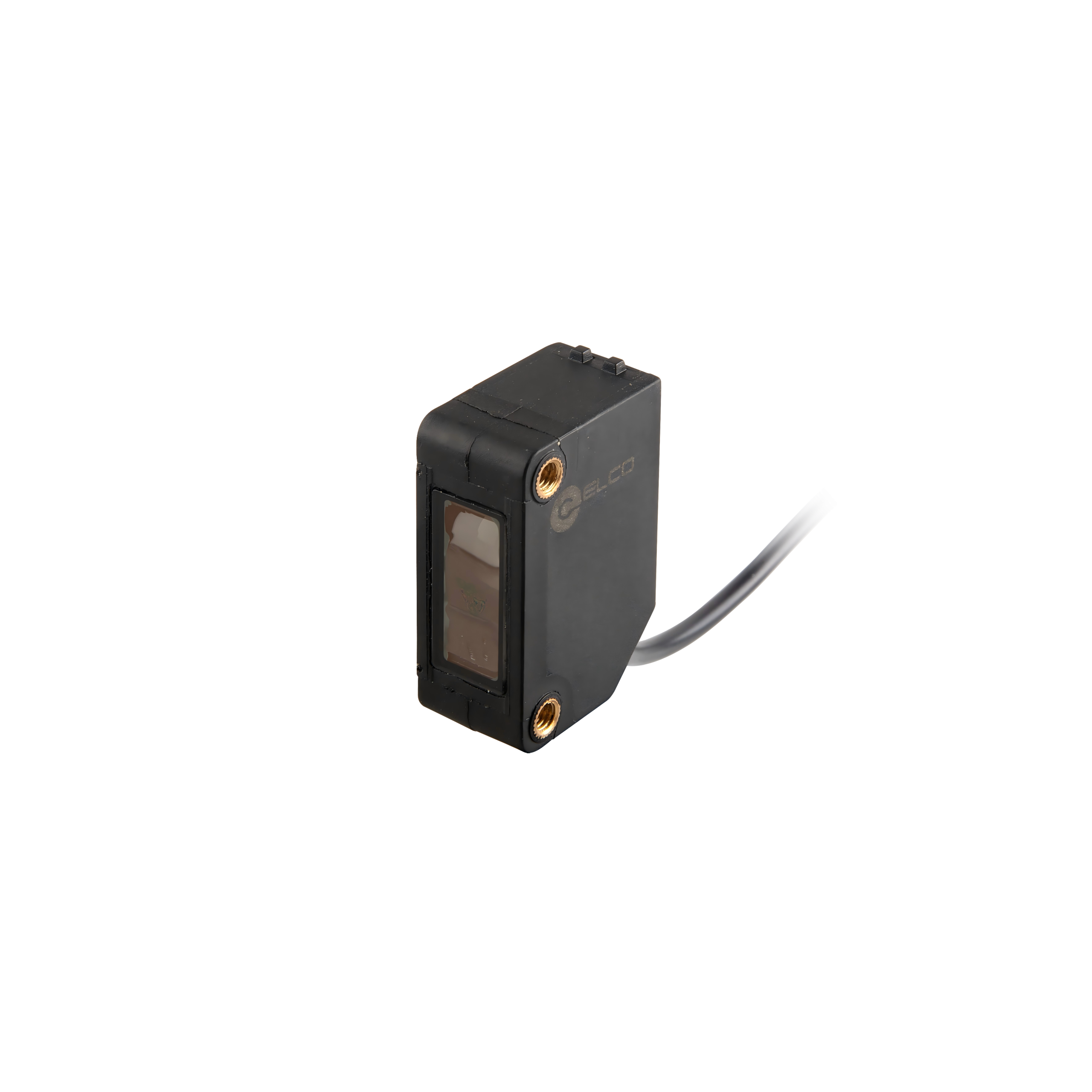

OS10U-TRPCN6 Photoelectric Sensor
Photoelectric Sensor, OS10U-Series, Retro-reflective vitreous body detect, Blue beam, Operating range 2 m, NPN, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 1000 Hz, IP67, Cable 2 m
In Stock
$71.33
per unit
Applications: Sensors & I/O
Technical Data
| IP rating | IP67 |
| Connection type | 2 m, PVC |
| Load current | ≤ 200 mA |
| Ambient temperature | -25 … +55 ℃ |
| Housing material | PC + PBT |
| Connection | Cable |
| Detection method | Coaxial retro-reflective |
| Sensing range | 2 m |
| Light source | Blue LED |
| Spot size | 6 cm @ 2m |
| Output type | NPN |
| Output status | L.O / D.O |
| Switching frequency | 1000 Hz |
| Supply voltage | 10 … 30 V DC |
| Anti-ambient light | ≤ 3000 lux |
| Special characteristics | Vitreous body detect |
