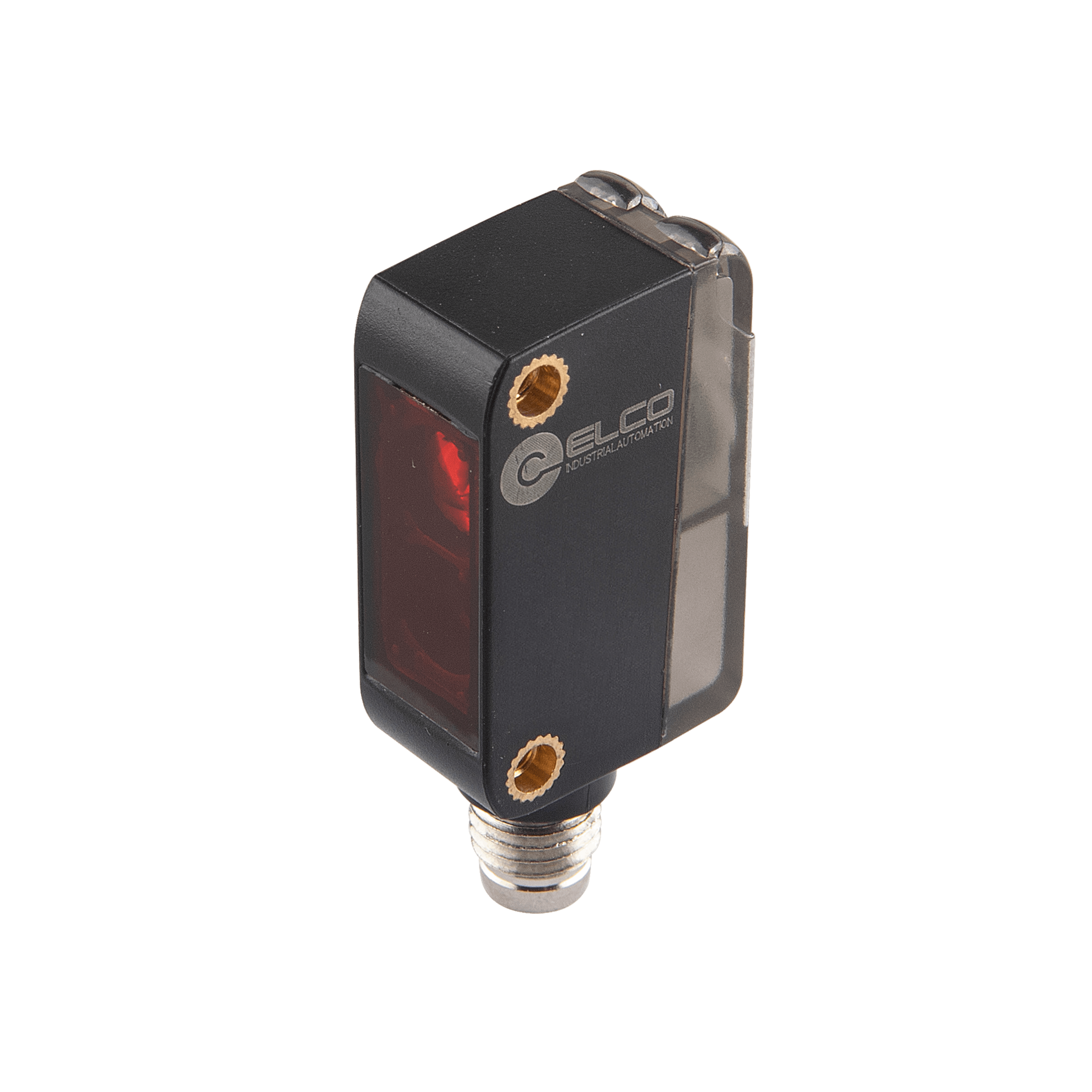

OS10S-S6Q8 Photoelectric Sensor
Photoelectric Sensor, OS10S-Series, Opposed, Emitter, Red beam, Operating range 10 m, 10…30V DC, -20…60°C, IP67, M8 4-pin connector
In Stock
$26.86
per unit
Applications: Sensors & I/O
Technical Data
| Detection method | Opposed (Emitter) |
| Sensing range | 10 m |
| Light source | Red LED |
| Spot size | 4 cm @ 2 m |
| Supply voltage | 10 … 30 V DC |
| Ambient temperature | -20 … +60 ℃ |
| Connection | Connector |
| Connection type | M8, 4-pin |
| IP rating | IP67 |
| Housing material | PC + PBT |
