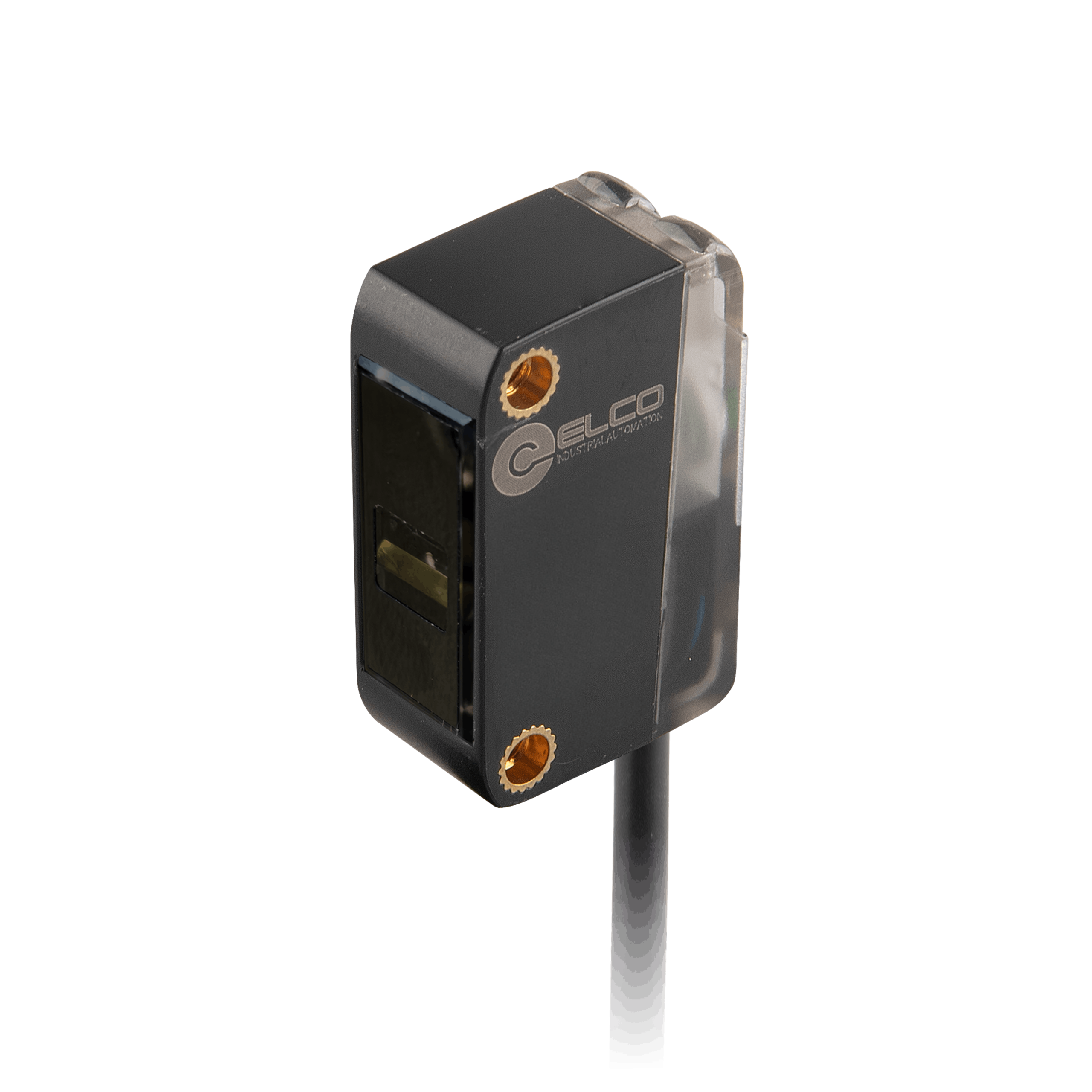

OS10S-RPCP6/ND Photoelectric Sensor
Photoelectric Sensor, OS10S-Series, Polarized retro-reflective, Red beam, Operating range 2 m, PNP, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 800 Hz, IP67, Cable 2 m
In Stock
$37.52
per unit
Applications: Sensors & I/O
Technical Data
| Connection type | 2 m, PVC |
| Detection method | Polarized Retro-reflective |
| Sensing range | 2 m |
| Anti-ambient light | ≤ 5000 lux |
| Housing material | PC + PBT |
| Connection | Cable |
| IP rating | IP67 |
| Special characteristics | No blind spots |
| Light source | Red LED |
| Spot size | 3 × 20 mm @ 100 mm |
| Output type | PNP |
| Output status | L.O / D.O |
| Switching frequency | 800 Hz |
| Supply voltage | 10 … 30 V DC |
| Load current | ≤ 100 mA |
| Ambient temperature | -20 … +60 ℃ |
