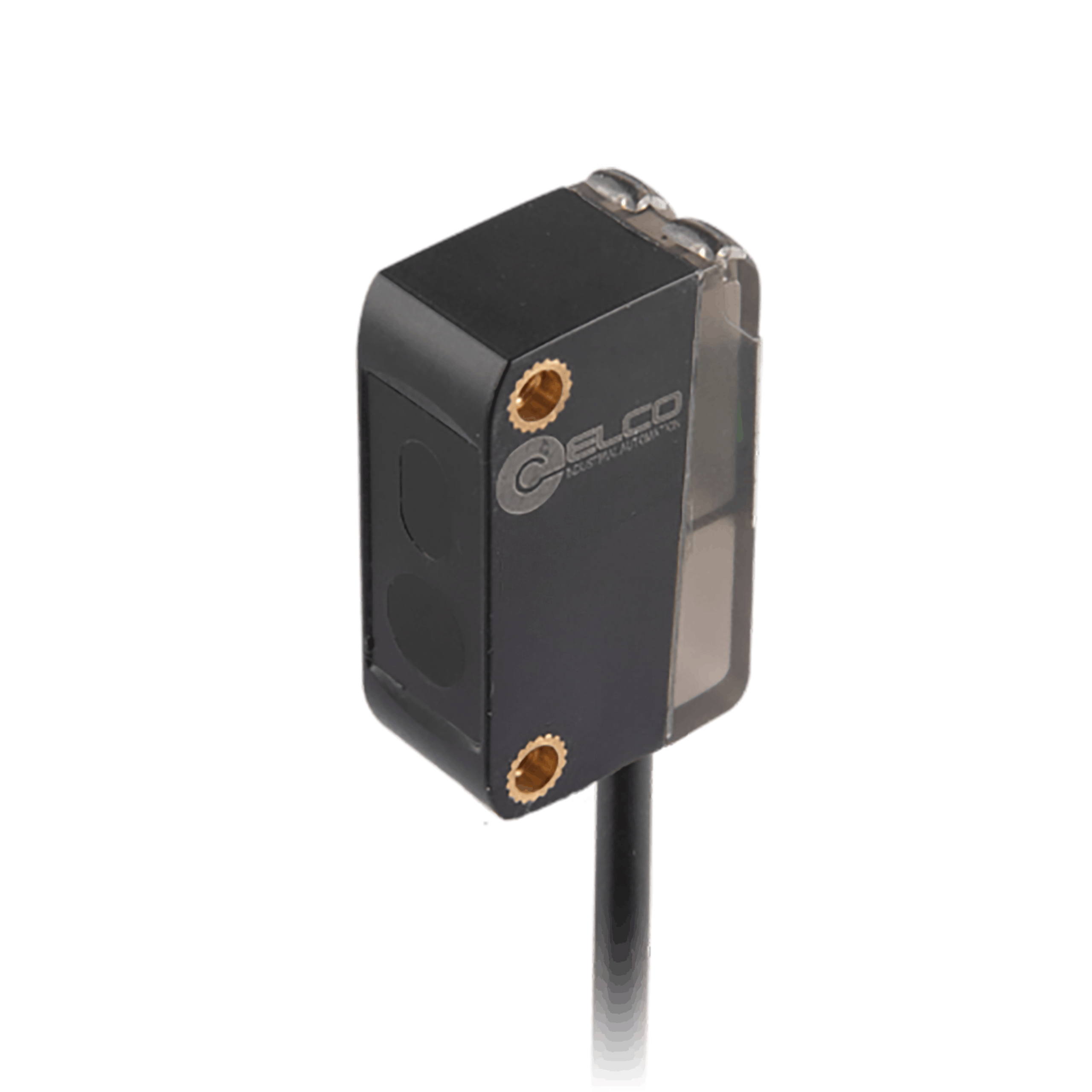

OS10S-K4000/UR Photoelectric Sensor
Photoelectric Sensor, OS10S-Series, Diffused, Infrared laser, Operating range 50…4000 mm, UART, 5V DC, -20…60°C, Switching frequency 80 Hz, IP67, Cable 2 m
In Stock
$120.43
per unit
Applications: Sensors & I/O
Technical Data
| Connection type | 2 m, PVC |
| Ambient temperature | 0 … +55 ℃ |
| Anti-ambient light | ≤ 10000 lux |
| Housing material | PC + PBT |
| IP rating | IP67 |
| Detection method | TOF BGS Diffused |
| Sensing range | 50 … 4000 mm |
| Light source | Infrared laser / Class 1 |
| Spot size | 14 × 7 cm @ 4 m |
| Output type | UART |
| Supply voltage | 5 V DC |
| Connection | Cable |
