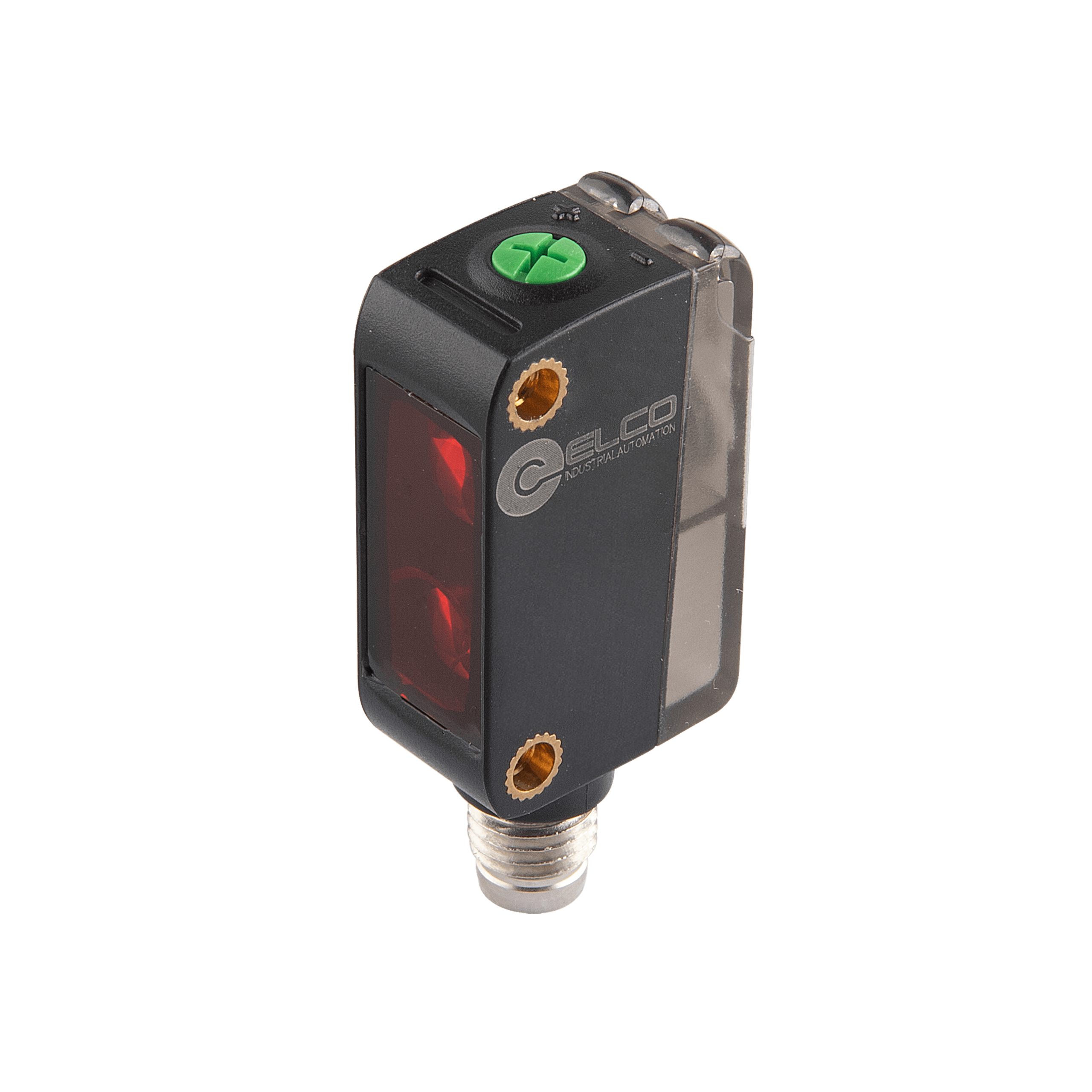

OS10S-AK150CP6Q8 Photoelectric Sensor
Photoelectric Sensor, OS10S-Series, Diffused with BGS, Red beam, Operating range 6…150 mm, PNP, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 400 Hz, IP67, M8 4-pin connector
In Stock
$45.39
per unit
Applications: Sensors & I/O
Technical Data
| Detection method | BGS Diffused |
| Sensing range | 6 … 350 mm |
| Light source | Red LED |
| Connection type | M8, 4-pin |
| Output status | L.O / D.O |
| Switching frequency | 400 Hz |
| Supply voltage | 10 … 30 V DC |
| Ambient temperature | -20 … +60 ℃ |
| Spot size | 6 mm @ 150mm |
| Output type | PNP |
| IP rating | IP67 |
| Housing material | PC + PBT |
| Connection | Connector |
| Anti-ambient light | ≤ 10000 lux |
| Load current | ≤ 100 mA |
