OPT70N T-Plug for Signal Extraction
T-Plug for Signal Extraction
In Stock
$81.11
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- With fixing holes
Technical Data
Electrical Data
| Signal Extraction | yes |
Mechanical Data
| Connection 1 | Plug, straight |
| Connection mode 1 | M12 × 1, 4-pin |
| Connection 2 | Socket, angled Plug, angled |
| Connection mode 2 | M12 × 1, 4-pin |
| Torque | M12: 0,8 Nm |
| Coding | A-coding |
| Degree of Protection | IP68 |
| Temperature Range | -25 … 90 °C |
| Material Sleeve Nut | Brass |
| Weight | 38 g |
General Data
| Scope of delivery | 1 × plug |
| Packaging unit | 1 Piece |
Standards and certificates
 |
Pin assignment
  |

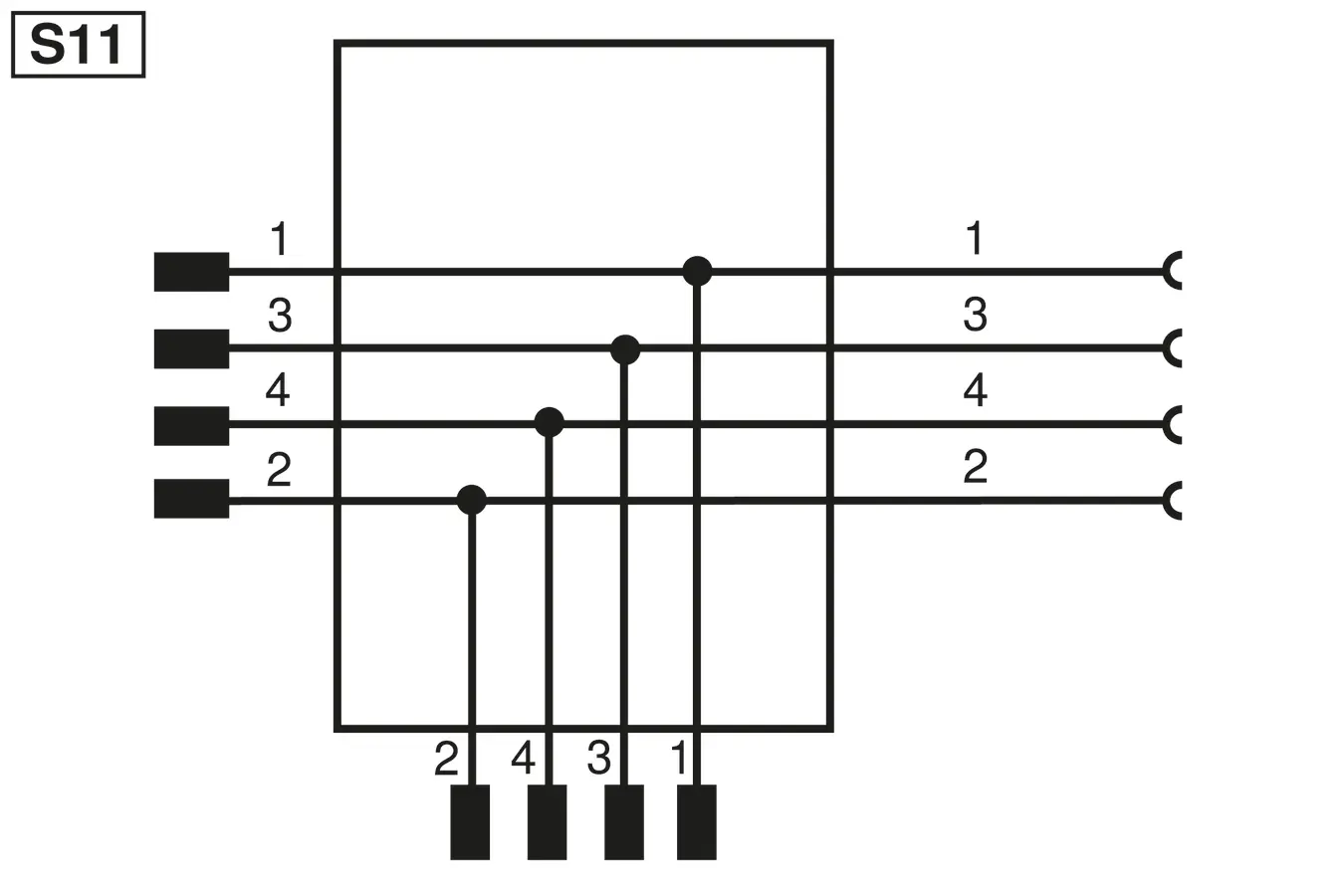

Connection Diagram
 |
