Description

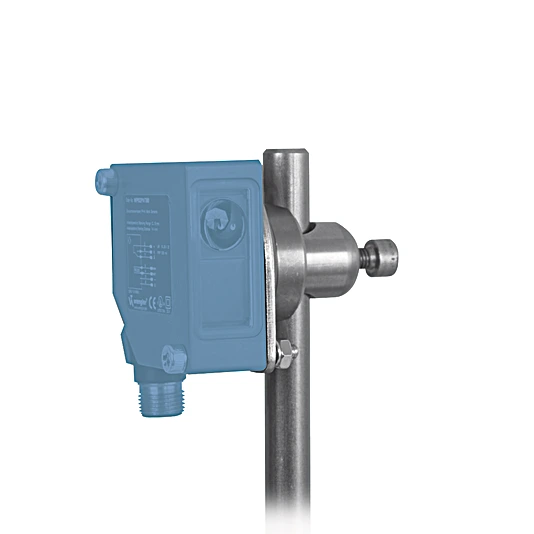

The mounting allows wenglor sensors and reflectors to be easily adjusted and rotated 360° on the vertical and horizontal planes.
Features at a Glance
- Aluminum
- Simple installation
- Flexible alignment options
- For 50 × 50 × 20…30 mm
Technical Data
Mechanical Data
| Mounting type, device-side | Screwable to mounting plate |
| Mounting type, system-side | Mounting bar |
| Material | Aluminum, anodised |
| Material Mounting Head | Aluminum, anodised |
| Material Mounting Plate | Stainless steel, V2A (1.4301 / 304) |
| for Round Profile Diameter | 8 … 13 mm |
| Rod length | 500 mm |
| Weight | 565 g |
General Data
| Scope of delivery | 1 × WPS12AL mounting 1 × bent mounting bar 1 × ZMSBS0001 mounting clamp |
| Packaging unit | 1 Piece |
| Use | for square housing |
Standards and certificates
 |
Alignment possibilities
 |
Contour types
 |
