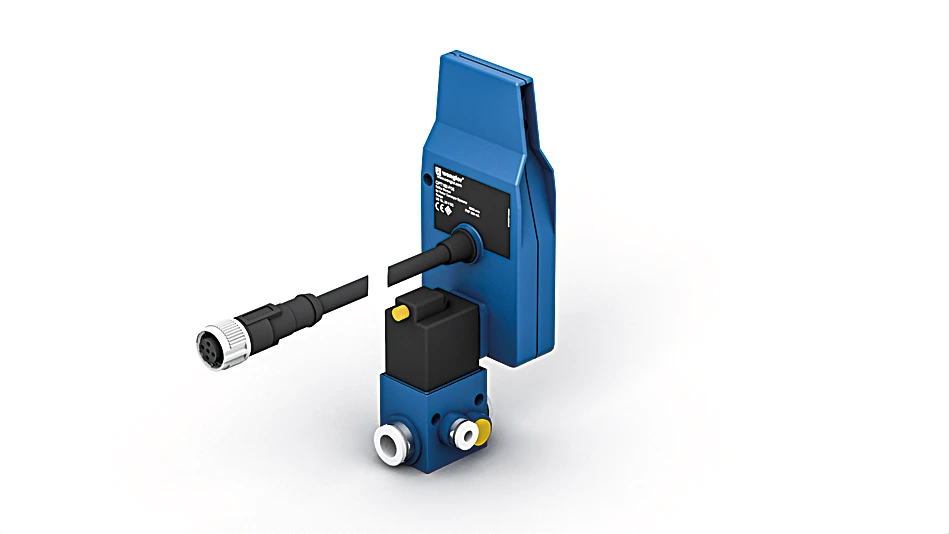

OPT162 Retro-Reflex Sensor
Retro-Reflex Sensor
In Stock
$852.92
per unit
Applications: Sensors & I/O
Description
These sensors have been specially designed for use in accumulation roller conveyors. Their compact design allows for installation between two rollers below the conveyor level. They are thus protected against mechanical damage.
Features at a Glance
- Recognition of high-gloss and jet black objects
- Integrated logic
- Fully encapsulated
- Large working range
Technical Data
Optical Data
| Range | 6,500 mm |
| Reference Reflector/Reflector Foil | RQ100BA |
| Min. Distance to Reflector | 100 mm |
| Switching Hysteresis | < 15 % |
| Light Source | Red Light |
| Polarization Filter | yes |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | 5 ° |
| Two-Lens Optic | yes |
Electrical Data
| Supply Voltage | 18 … 30 V DC |
| Current Consumption Sensor (Ub = 24 V) | < 30 mA |
| Switching Frequency | 100 Hz |
| Response Time | 5 ms |
| Temperature Drift | < 10 % |
| Temperature Range | -15 … 50 °C |
| Number of Switching Outputs | 1 |
| Switching Output Voltage Drop | < 0.8 V |
| PNP Switching Output/Switching Current | 200 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Logic | yes |
| Block Forwarding | yes |
| Valve Control | yes |
| Protection Class | III |
Mechanical Data
| Housing Material | Plastic, PBT |
| Full Encapsulation | yes |
| Degree of Protection | IP65 |
| Connection | M12 × 1; 4-pin |
| Cable length (L) | 880 mm |
| Cable Jacket Material | PVC |
| Weight | 226 g |
General Data
| Scope of delivery | 1 × Z0034 molded seal 1 × initial start-up instructions 1 × VENTIL-K04 solenoid valve 1 × M2.5 screw × 22 mm 1 × sensor |
Pneumatic Solenoid Valve Unit
| Valve no. | K04 |
| Supply Voltage Valve | 19.2 … 28.8 V |
| Current Consumption Valve | 86 mA |
| Operating Pressure | 4 … 7 bar |
| Nominal Width | 0.8 mm |
| Nominal flow rate 1 -> 2 | 20 NL/min |
| Nominal flow rate 2 -> 3 | 100 NL/min |
| Supply-Line Connector Pipe | 2× 8×1 |
| Working-Line Connector Pipe | 4×1 |
| Valve function | 3/2-Way |
| Switching function | NC |
Output
| PNP NO | yes |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
01 = Switching Status Indicator
|
Reflector data
| RQ100BA | 0.25 … 6.5 m |
| RE18040BA | 0.1 … 4 m |
| RQ84BA | 0.25 … 5 m |
| RR84BA | 0.2 … 5 m |
| RE9538BA | 0.15 … 2 m |
| RR50_A | 0.15 … 3 m |
| RE6040BR | 0.2 … 2.5 m |
| RE8222BA | 0.25 … 1.8 m |
| ZRAE02B01 | 0.2 … 1.8 m |
| ZRME03B01 | 0.15 … 2 m |
| RF505 | 0.15 … 1.9 m |
| RF508 | 0.15 … 1.9 m |
| RF258 | 0.15 … 1.5 m |
| ZRDF03K01 | 0.1 … 3.5 m |
| ZRDF10K01 | 0.1 … 4.5 m |
