OPT1503 Reflex Sensor with Background Suppression
Reflex Sensor
In Stock
$539.00
per unit
Applications: Sensors & I/O
Description

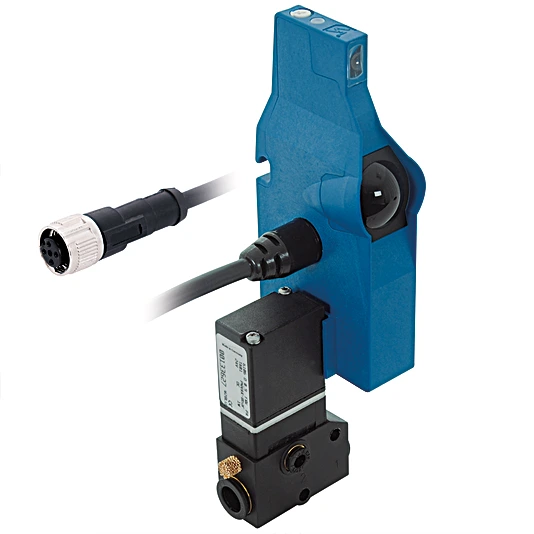

These sensors have been specially designed for use in accumulation roller conveyors. Their compact design allows for installation between rollers below the transport level. High-precision background suppression makes it possible to reliably detect even black objects at up to 900 mm. The scaled switching-distance adjuster assures quick and simple adjustment to the desired distance. Thanks to the innovative fast-clip mounting system and quick wiring, the sensor are installed and ready for use in no time flat.
Features at a Glance
- Scaled switching distance adjuster
- Energy savings thanks to EcoMode
- Time-saving installation with fast-clip mounting system
- Quick wiring
- Optimized performance
Technical Data
Optical Data
| Range | 900 mm |
| Switching Hysteresis | < 5 % |
| Light Source | Infrared Light |
| Wavelength | 860 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Risk Group (EN 62471) | 1 |
| Max. Ambient Light | 90,000 Lux |
| Opening Angle | 3 ° |
Electrical Data
| Supply Voltage | 23 … 27.8 V DC |
| Current Consumption Sensor (Ub = 24 V) | < 16 mA |
| EcoMode | yes |
| Switching Frequency | 100 Hz |
| Response Time | 5 ms |
| Temperature Drift | < 5 % |
| Temperature Range | -40 … 60 °C |
| Number of Switching Outputs | 1 |
| Switching Output Voltage Drop | < 0.9 V |
| PNP Switching Output/Switching Current | 200 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Logic | yes |
| Single Discharge | yes |
| Block Forwarding | yes |
| Solenoid Valve | yes |
| Protection Class | III |
Mechanical Data
| Setting Method | Potentiometer |
| Housing Material | Plastic, ABS/GF |
| Degree of Protection | IP65 |
| Connection | M12 × 1; 4-pin |
| Cable length (L) | 1 m |
| Cable Jacket Material | PVC |
| Weight | 234 g |
General Data
| Scope of delivery | 1 × cover cap for M12 screw connector 1 × molded seal 1 × initial start-up instructions 1 × VENTIL-K03 solenoid valve 1 × O-ring ø 2.7 mm × 0.65 mm 1 × M2.5 screw × 22 mm 1 × sensor |
Pneumatic Solenoid Valve Unit
| Valve no. | K03 |
| Supply Voltage Valve | 21.6 … 26.4 V |
| Current Consumption Valve | 42 mA |
| Valve temperature range | -10 … 55 °C |
| Operating Pressure | 0 … 8 bar |
| Nominal Width | 0.9 mm |
| Nominal flow rate 1 -> 2 | 22 NL/min |
| Nominal flow rate 2 -> 3 | 25 NL/min |
| Supply-Line Connector Pipe | 2× 8×1 |
| Working-Line Connector Pipe | 4×1 |
| Valve function | 3/2-Way |
| Switching function | NO |
Output
| PNP NC | yes |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
30 = Switching Status/Contamination Warning
05 = Switching Distance Adjuster |
