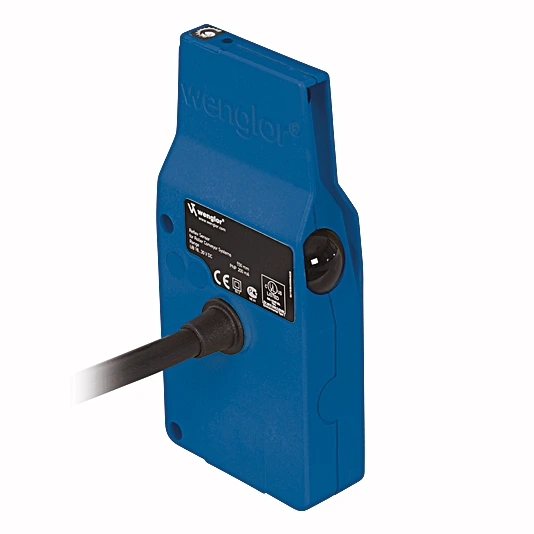

OPT144-P06 Reflex Sensor with Background Suppression
Reflex Sensor
In Stock
$553.85
per unit
Applications: Sensors & I/O
Description
These sensors have been specially designed for use in accumulation roller conveyors. Their compact design allows for installation between two rollers below the conveyor level. They are thus protected against mechanical damage. This product has been discontinued, but is still available as a spare part. Successor
Features at a Glance
- Integrated logic
- Electronic background suppression
- Scaled switching distance adjuster
- Fully encapsulated
Technical Data
Optical Data
| Range | 550 mm |
| Potentiometer min | 220 … 270 mm |
| Potentiometer center | 320 … 400 mm |
| Potentiometer max | 550 … 630 mm |
| Switching Hysteresis | < 15 % |
| Light Source | Infrared Light |
| Wavelength | 880 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Risk Group (EN 62471) | 1 |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | 5 ° |
Electrical Data
| Supply Voltage | 18 … 30 V DC |
| Current Consumption Sensor (Ub = 24 V) | < 30 mA |
| Switching Frequency | 100 Hz |
| Response Time | 5 ms |
| Temperature Drift | < 10 % |
| Temperature Range | -25 … 60 °C |
| Number of Switching Outputs | 2 |
| Switching Output Voltage Drop | < 0.8 V |
| PNP Switching Output/Switching Current | 200 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Logic | yes |
| Block Forwarding | yes |
| Protection Class | III |
Mechanical Data
| Setting Method | Potentiometer |
| Housing Material | Plastic |
| Full Encapsulation | yes |
| Degree of Protection | IP65 |
| Connection | M12 × 1; 4-pin |
| Cable length (L) | 1.5 m |
| Weight | 220 g |
General Data
| Scope of delivery | 1 × sensor |
Output
| PNP NC | yes |
Standards and certificates
    |
Connection Diagram
 |
Ctrl. Panel
|
05 = Switching Distance Adjuster
30 = Switching Status/Contamination Warning |
