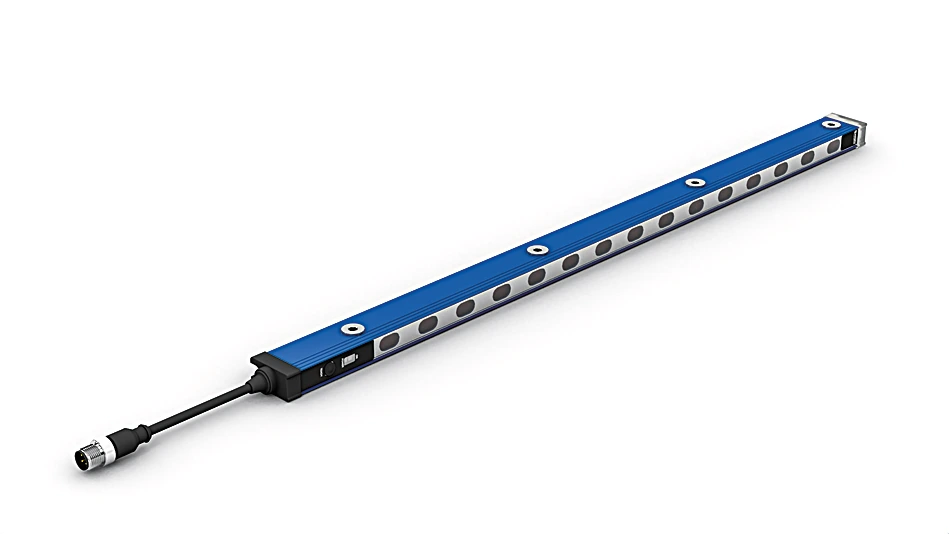

OLEB422C0102 Light Curtain Pick-to-Light
Light Curtain
In Stock
$913.00
per unit
Applications: Sensors & I/O
Description
Pick to light light curtains use the single-lens reflex principle. The necessary reflector is pre-installed on the rear of the housing and serves as a reflective surface for the neighboring light curtain, making installation easier. The integrated two-color light from the job display is visible from 360° and shows both correct and incorrect picks.
Features at a Glance
- Error prevention during partial picking processes in shelves and storage locations
- Low mounting thanks to integrated reflector
- Rugged aluminium housing
- 360° visible, two-color job display
Technical Data
Optical Data
| Range | 2,000 mm |
| Min. Distance to Reflector | 100 mm |
| Measurement Field Height (MFH) | 420 mm |
| Beam Distance | 30 mm |
| Switching Hysteresis | < 15 % |
| Light Source | Red Light |
| Polarization Filter | yes |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | 2.5 ° |
| Two-Lens Optic | yes |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 70 mA |
| Switching Frequency | 40 Hz |
| Response Time | 12 ms |
| Temperature Drift | < 10 % |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data
| Setting Method | Teach-In |
| Display | Illuminated cap |
| Housing Material | Aluminum, powder-coated Plastic, PC |
| Optic Cover | Plastic, PMMA |
| Degree of Protection | IP65 |
| Connection | M12 × 1; 4-pin |
| Cable length (L) | 250 mm |
| Housing Length (L) | 546 mm |
| Reflector Length (RL) | 486 mm |
| Weight | 270 g |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Output
| PNP NO/NC switchable | yes |
Adjustable parameters
| Circuit | NC NC/NO NO |
| All other parameters can be found in the product documentation. |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
06 = Teach Button
68 = Power LED 01 = Switching Status Indicator |
