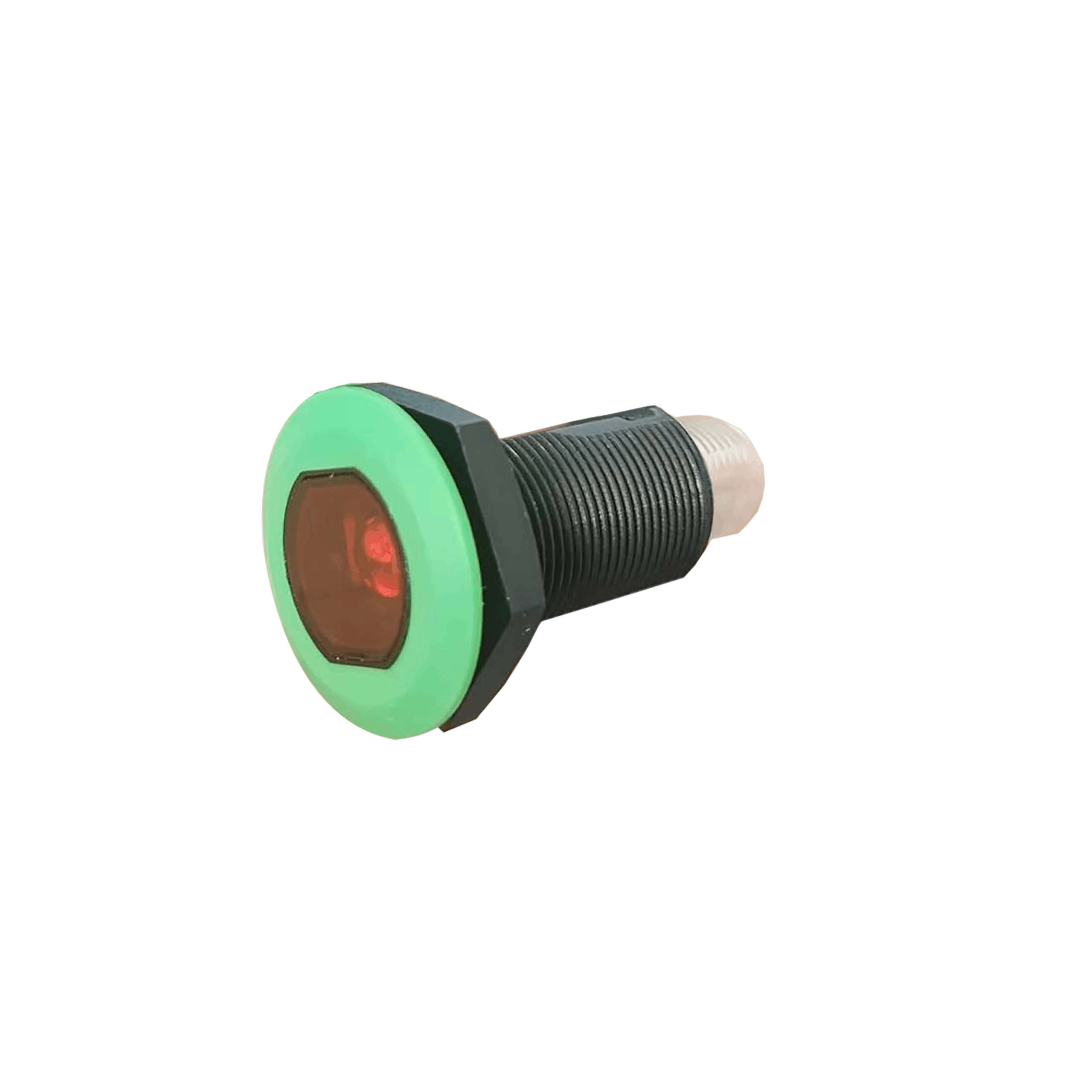

OG18-AK100VP6Q Photoelectric Sensor
Photoelectric Sensor, OG18-Series, Diffused with fixed BGS, Red beam, Operating range 100 mm, PNP, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, M12 4-pin connector
In Stock
$42.61
per unit
Applications: Sensors & I/O
Technical Data
| Connection type | M12, 4-pin |
| Ambient temperature | -25 … +55 ℃ |
| Sensing range | 8 … 100 mm |
| Light source | Red LED |
| Spot size | 7 mm @ 100 mm |
| Output type | PNP |
| Output status | L.O + D.O |
| Switching frequency | 400 Hz |
| Detection method | BGS Diffused |
| Supply voltage | 10 … 30 V DC |
| Load current | ≤ 200 mA |
| Anti-ambient light | ≤ 10000 lux |
| IP rating | IP67 |
| Special characteristics | Fixed distance BGS |
| Connection | Connector |
| Housing material | PBT + ABS |
