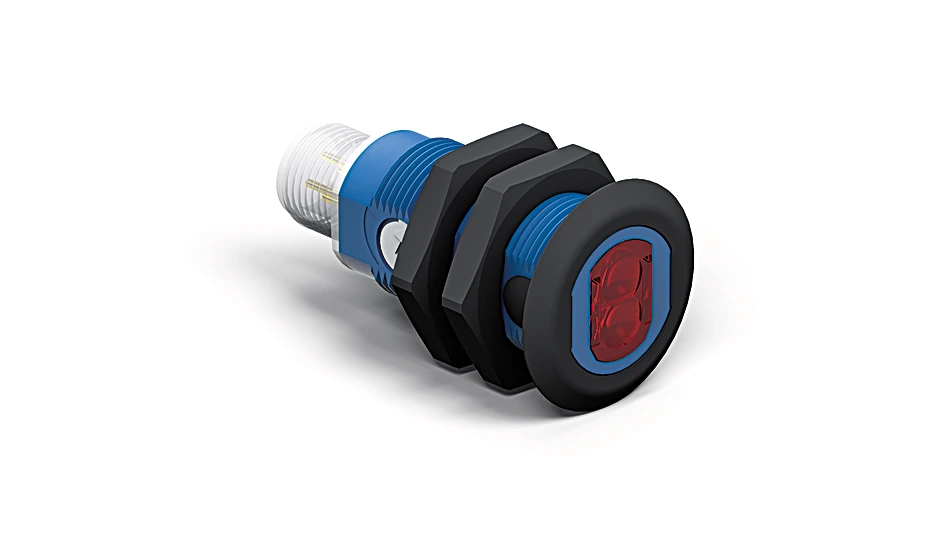

OEDK803A0002 Through-Beam Sensor
Through-Beam Sensor
In Stock
$67.30
per unit
Applications: Sensors & I/O
Description
These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.
Features at a Glance
- Switching distance adjuster
- Clever inclusive mounting technology
- Simple installation
- Large working range
- Minimal installation space
Technical Data
Optical Data
| Range | 8,000 mm |
| Switching Hysteresis | < 15 % |
| Light Source | Red Light |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | 4 ° |
Electrical Data
| Sensor Type | Receiver |
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 20 mA |
| Switching Frequency | 600 Hz |
| Response Time | 833 µs |
| Temperature Drift | < 10 % |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 100 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data
| Setting Method | Potentiometer |
| Housing Material | Plastic, ABS/GF |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 4-pin |
| Weight | 15 g |
General Data
| Scope of delivery | 1 × mounting console 1 × initial start-up instructions 1 × MUTTER-M18-E012 hex nut 1 × sensor |
| Packaging unit | 1 Piece |
Output
| PNP NC, PNP NO | yes |
Adjustable parameters
| Circuit | NC NC+NO NO |
| All other parameters can be found in the product documentation. |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
05 = Switching Distance Adjuster
68 = Power LED 01 = Switching Status Indicator |
