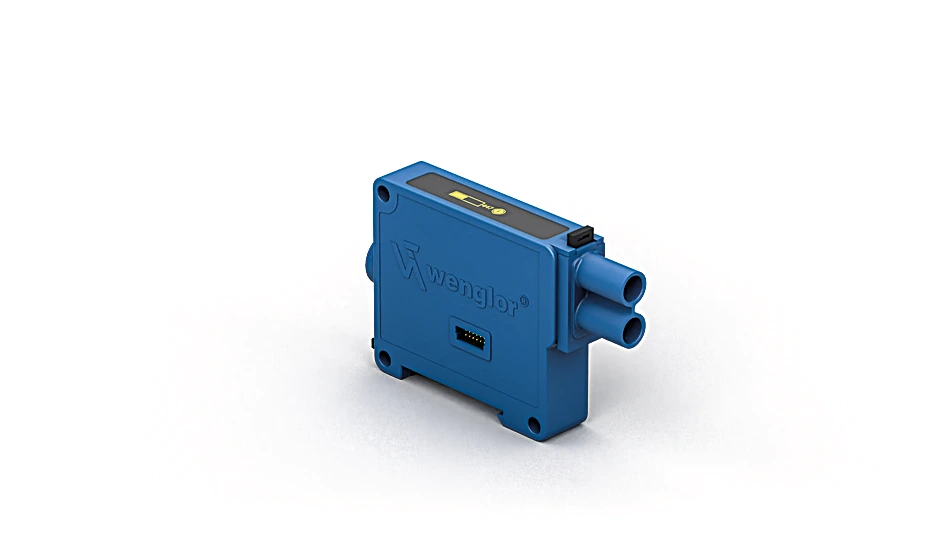

ODXS960 Fiber-optic amplifier
Fiber-Optic Amplifier
In Stock
$313.00
per unit
Applications: Sensors & I/O
Description
These sensors are connected to the basic module. wenglor fiber optic cables can be adapted to them. The graphic display assures easy, menu-driven sensor setup. Signal strengths and the switching threshold can be read from the display as numeric values or as a bar graph. Convenient programming and quick diagnosis is possible via the IO-Link interface.
Features at a Glance
- Recognition of transparent objects
- No wiring required thanks to plug connector
- Mount for fiber optic cable adapter 3
- Increased light output
- Add-on module for ODXS959
Technical Data
Optical Data
| Switching Hysteresis | 15 % |
| Light Source | Red Light |
| Wavelength | 660 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
Electrical Data
| Current Consumption (Ub = 24 V) | + 20 mA |
| Response Time | + 70 µs |
| On-/Off-Delay | 0 … 10,000 ms |
| Temperature Drift | < 10 % |
| Temperature Range | -25 … 50 °C |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Teach Mode | NT, MT, ZT, DT, FT, HT, TP |
| Protection Class | III |
Mechanical Data
| Setting Method | Menu (OLED) |
| Housing Material | Plastic, ABS Plastic, PC |
| Degree of Protection | IP50 |
| DIN-Rail mounting | 35 mm |
| Weight | 37 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 1,089 a |
General Data
| Scope of delivery | 1 × sensor |
Output
| PNP NO | yes |
Adjustable parameters
| Output | NPN PNP Push-pull |
| Circuit | NC NC/NO NO |
Standards and certificates
     |
Ctrl. Panel
|
60 = display
|
Complementary Products
|
Documentation
CAD data
Datasheets
Declarations of Conformity / Approvals
Initial start-up instructions
Interface protocol
Interface_Protocol_IO-Link_Parameter_Process_Data_ODX402P0088-99_EN.pdf
1 file(s) 835.26 KB
