ODXS959 Fiber-optic amplifier
Fiber-Optic Amplifier
In Stock
$623.00
per unit
Applications: Sensors & I/O
Description

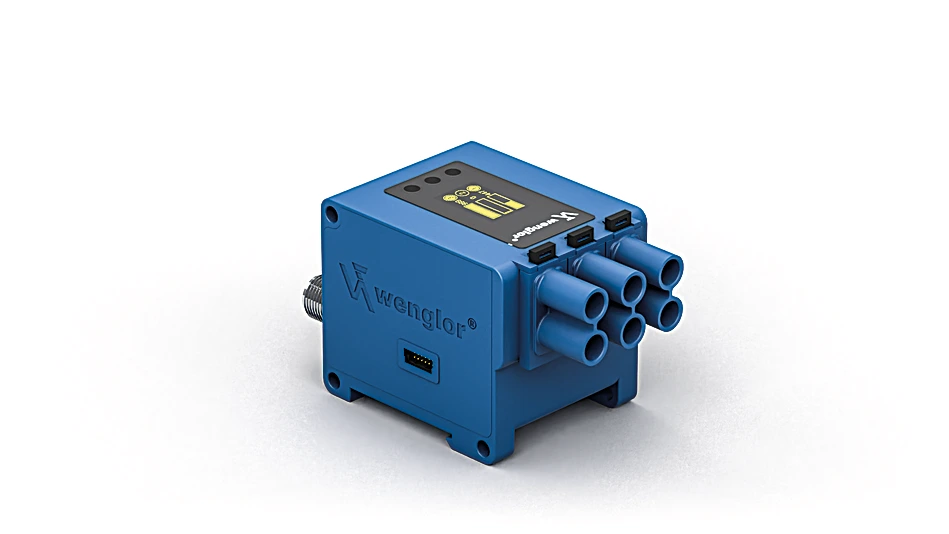

Three wenglor fiber-optic cables are connected to these sensors. Up to 12 add-on modules can be connected to this basic module, making 15 fiber-optic cables available. The graphic display guarantees easy, menu-driven sensor setup. Signal strengths and the switching threshold can be read from the display as numeric values or as a bar graph. Convenient programming and quick diagnosis is possible via the IO-Link interface.
Features at a Glance
- Recognition of transparent objects
- Basic module
- Mount for fiber optic cable adapter 3
- Modular system – 12 add-on modules can be connected, ODXS960
- Menu-driven settings
- Increased light output
Technical Data
Optical Data
| Switching Hysteresis | < 15 % |
| Light Source | Red Light |
| Wavelength | 660 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
Electrical Data
| Supply Voltage | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 90 mA |
| Switching Frequency | 2 kHz |
| Response Time | 250 µs |
| On-/Off-Delay | 0 … 10,000 ms |
| Temperature Drift | < 10 % |
| Temperature Range | -25 … 50 °C |
| Switching Output Voltage Drop | < 2.5 V |
| Switching Output/Switching Current | 100 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Teach Mode | NT, MT, ZT, DT, FT, HT, TP |
| Interface | IO-Link V1.0 |
| IO-Link Parameter | > 12 |
| Protection Class | III |
Mechanical Data
| Setting Method | Menu (OLED) |
| Housing Material | Plastic, ABS Plastic, PC |
| Degree of Protection | IP50 |
| Connection | M12 × 1; 4+8-pin |
| DIN-Rail mounting | 35 mm |
| Weight | 202 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 347.83 a |
General Data
| Speed Measurement | X |
| Selectable menu language | X |
| Password Protection | X |
| Logic Output | AND / OR |
| Scope of delivery | 1 × initial start-up instructions 1 × sensor 1 × locking screw |
Output
| Contamination Output | yes |
| IO-Link | yes |
| PNP NO | yes |
Adjustable parameters
| Output | Push-pull NPN PNP Contamination Output |
| Circuit | NC NC/NO NO |
| Other parameters | Off-delay On-delay Teach-in mode |
Standards and certificates
      |
Connection Diagram
 |
Ctrl. Panel
|
60 = display
20 = Enter key 22 = Up key 23 = Down key |
